Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Çalışma Sıcaklığı
- -55°C~125°C
- JESD-609 Kodu
- e4
- Din Conformance
- NO
- Terminal
- Press-Fit
- Contact Materials
- NOT SPECIFIED
- Depth
- 15.4mm
- Fabrika Tedarik Süresi
- 7 Weeks
- Orientation
- Straight
- Ambalaj
- Tube
- Montaj Tipi
- Through Hole
- Iec Conformance
- NO
- Montaj
- Through Hole
- Seri

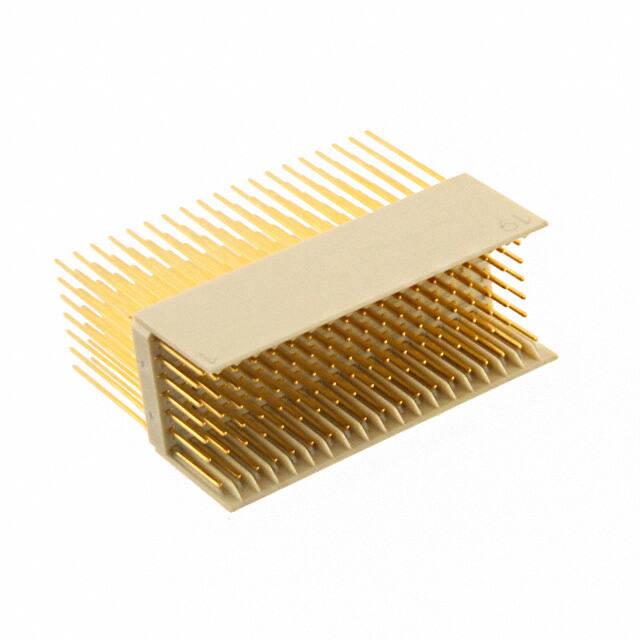

- har-bus® HM
- Uzunluk
- 38mm
- Contact Finish
- Gold or Gold-Palladium
- Connector Type
- Header, Male Pins
- Additional Feature
- 38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
- Pitch
- 0.079 2.00mm
- Connector Usage
- Backplane
- Kurşunsuz Kodu
- yes
- Current Rating Amps
- 1A
- Mixed Contacts
- NO
- Total Number Of Contacts
- 133
- Housing Material
- Thermoplastic
- Sıra Sayısı
- 5 + 2
- Number Of Positions Loaded
- All
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Connector Style
- B 19
- Filter Feature
- NO
- Mil Conformance
- NO
- Contact Plating
- Gold
- RoHS Durumu
- ROHS3 Compliant
- Ul Flammability Code
- 94V-0
- Option
- GENERAL PURPOSE
- Pozisyon Sayısı
- 133 (95 + 38 Ground)
