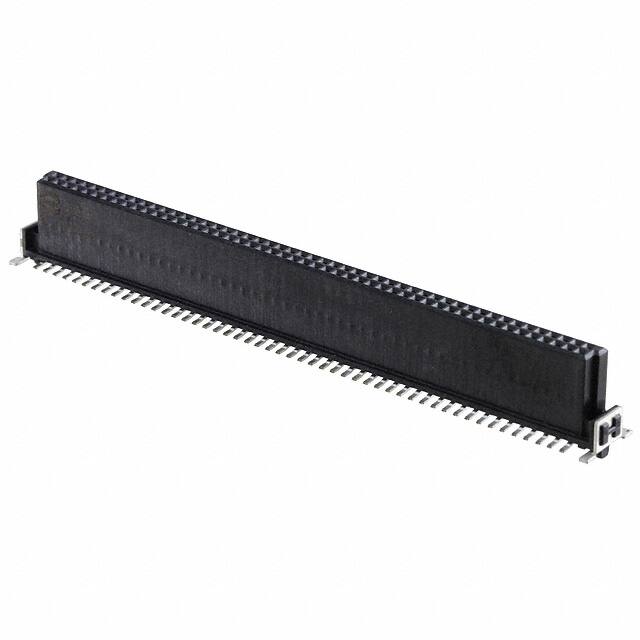

15221002601000

Specifications

Fabrika Tedarik Süresi

4 Weeks

Pcb Contact Row Spacing

5.4864 mm

Polarization Key

POLARIZED HOUSING

Montaj Tipi

Surface Mount

Connector Type

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Insertion Forcemax

.5004 N

Contact Shape

Square

Contact Type

Female Socket

Reference Standard

UL

Body Depth

0.356 inch

Row Spacing Mating

0.050 (1.27mm)

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Number Of Positions Loaded

All

Montaj

Surface Mount

Stack Height

9.05mm

Akım Değeri

700mA

Fastening Type

Push-Pull

Applications

General Purpose

Insulation Materials

Liquid Crystal Polymer (LCP)

Durability

500 Cycles

Number Of Pcb Rows

2

Withdrawl Forcemin

.5004 N

Contact Finish Post

Tin

Orientation

Straight

Sıra Sayısı

2

Mating Contact Pitch

0.05 inch

Çalışma Sıcaklığı

-55°C~125°C

Housing Material

Liquid Crystal Polymer

Parça Durumu

Active

Stack Height Mating

10.8mm ~ 13.8mm

Ambalaj

Cut Tape (CT)

Contact Materials

Copper Alloy

Pitch Mating

0.050 1.27mm

Pcb Contact Pattern

RECTANGULAR

Özellikler

Board Guide, Pick and Place, Solder Retention

Terminal

Solder

Insulation Height

0.356 9.05mm
