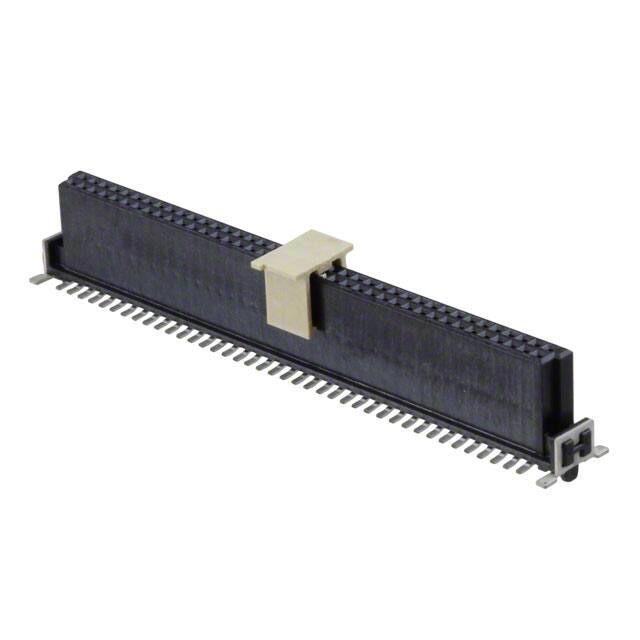

15220802601000

Specifications

Total Number Of Contacts

80

Seri

har-flex®

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Insulation Height

0.356 9.05mm

Din Conformance

NO

Contact Materials

Copper Alloy

Pitch Mating

0.050 1.27mm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Discontinued

Mil Conformance

NO

Reach Svhc

No SVHC

Withdrawl Forcemin

.5004 N

Number Of Pcb Rows

2

Insulation Resistance

10000000000Ohm

Applications

General Purpose

Insulation Materials

Liquid Crystal Polymer (LCP)

Fastening Type

Push-Pull

Akım Değeri

700mA

Stack Height

9.05mm

Montaj

Surface Mount

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Row Spacing Mating

0.050 (1.27mm)

Reference Standard

UL

Body Depth

0.356 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Pozisyon Sayısı

80

Insulation Color

Black

Style

Board to Board or Cable

Terminal

Solder

Özellikler

Board Guide, Pick and Place, Solder Retention

Ambalaj

Cut Tape (CT)

Stack Height Mating

10.8mm ~ 13.8mm

Iec Conformance

NO

Housing Material

Liquid Crystal Polymer

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Mating Contact Pitch

0.05 inch
