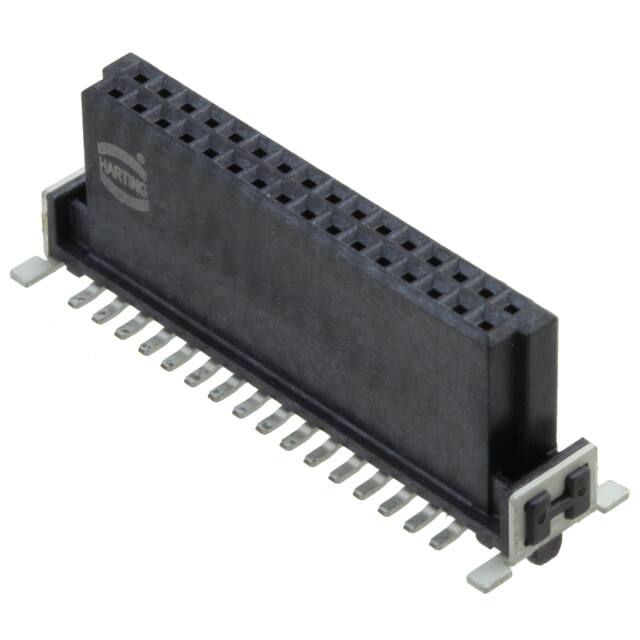

15220322601000

Specifications

Contact Type

Female Socket

Contact Shape

Square

JESD-609 Kodu

e3

Fabrika Tedarik Süresi

4 Weeks

Pcb Contact Row Spacing

5.4864 mm

Polarization Key

POLARIZED HOUSING

Body Length Or Diameter

1 inch

Kurşunsuz

Lead Free

Connector Type

Receptacle

Montaj Tipi

Surface Mount

Reliability

COMMERCIAL

Insertion Forcemax

.5004 N

Number Of Conductors

ONE

Çalışma Sıcaklığı

-55°C~125°C

Housing Material

Liquid Crystal Polymer

Durability

500 Cycles

Orientation

Straight

Contact Finish Post

Tin

Sıra Sayısı

2

Mating Contact Pitch

0.05 inch

Terminal

Solder

Insulation Color

Black

Style

Board to Board or Cable

Pozisyon Sayısı

32

Stack Height Mating

10.8mm ~ 13.8mm

Ambalaj

Cut Tape (CT)

Özellikler

Board Guide, Pick and Place, Solder Retention

Body Depth

0.356 inch

Reference Standard

UL

Row Spacing Mating

0.050 (1.27mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1.7A

Fastening Type

Push-Pull

Insulation Materials

Liquid Crystal Polymer (LCP)

Applications

General Purpose

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Montaj

Surface Mount

Stack Height

9.05mm

Reach Svhc

No SVHC
