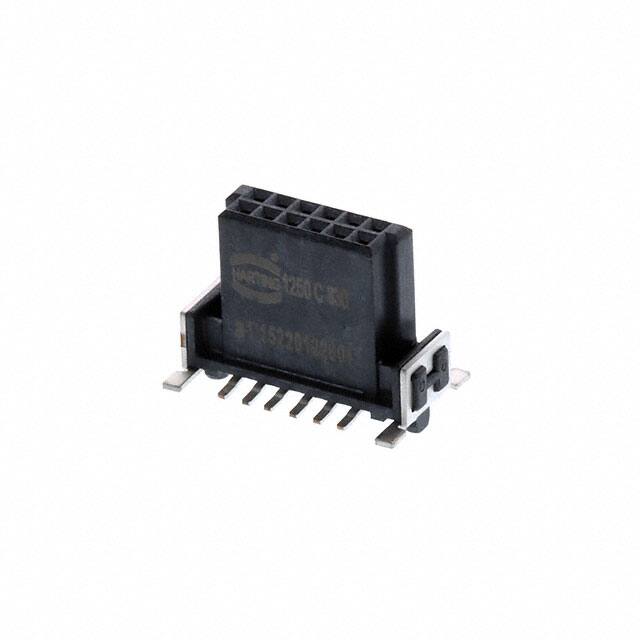

15220122601000

Specifications

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Stack Height

9.05mm

Akım Değeri

2A

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Mil Conformance

NO

Number Of Conductors

ONE

Reliability

COMMERCIAL

Orientation

Straight

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

5 Weeks

Contact Finish Mating

Gold

Body Length Or Diameter

0.5 inch

Özellikler

Board Guide, Pick and Place, Solder Retention

Montaj Tipi

Surface Mount

Insulation Resistance

10000000000Ohm

Applications

General Purpose

Contact Finish Post

Tin

Style

Board to Board or Cable

Row Spacing Mating

0.050 (1.27mm)

Montaj

Surface Mount

Insertion Forcemax

.5004 N

Connector Type

Receptacle

Total Number Of Contacts

12

Terminal

Solder

Pozisyon Sayısı

12

Insulation Height

0.356 9.05mm

Pitch Mating

0.050 1.27mm

Fastening Type

Push-Pull

Iec Conformance

NO

Withdrawl Forcemin

.5004 N

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Contact Type

Female Socket

Contact Materials

Copper Alloy

Durability

500 Cycles
