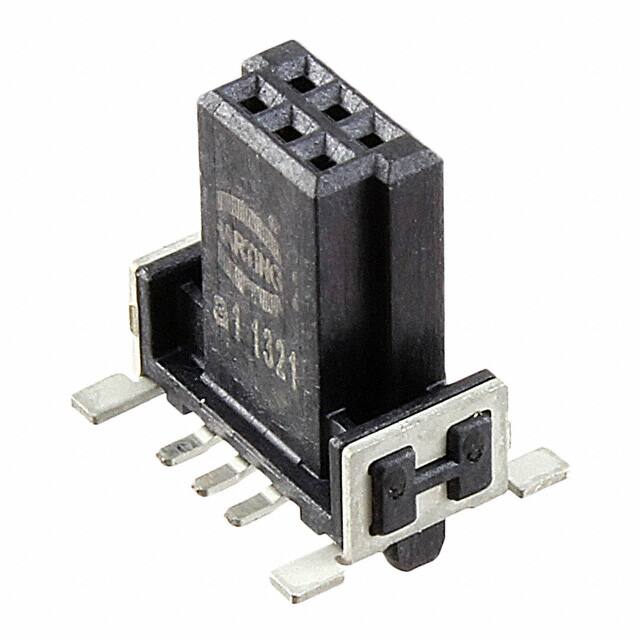

15220062601000

Specifications

Total Number Of Contacts

6

Number Of Pcb Rows

2

Contact Shape

Square

Insertion Forcemax

.5004 N

Connector Type

Receptacle

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Surface Mount

Row Spacing Mating

0.050 (1.27mm)

Sıra Sayısı

2

Housing Material

Liquid Crystal Polymer

Fastening Type

Push-Pull

Insulation Color

Black

Insulation Height

0.356 9.05mm

Seri

har-flex®

Pitch Mating

0.050 1.27mm

Mating Contact Pitch

0.05 inch

Stack Height Mating

10.8mm ~ 13.8mm

Ambalaj

Cut Tape (CT)

Reach Svhc

No SVHC

Pozisyon Sayısı

6

Terminal

Solder

Orientation

Straight

Reliability

COMMERCIAL

Polarization Key

POLARIZED HOUSING

Akım Değeri

1.2A

Number Of Conductors

ONE

Number Of Positions Loaded

All

Contact Type

Female Socket

Insulation Materials

Liquid Crystal Polymer (LCP)

Pcb Contact Pattern

RECTANGULAR

Durability

500 Cycles

Stack Height

9.05mm

Contact Materials

Copper Alloy

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Withdrawl Forcemin

.5004 N

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Contact Finish Post

Tin
