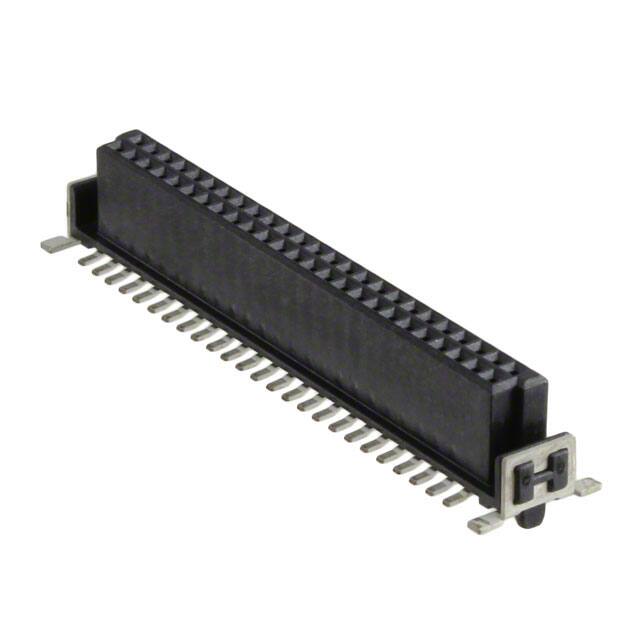

15210502601000

Specifications

Number Of Pcb Rows

2

Total Number Of Contacts

50

Style

Board to Board or Cable

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Row Spacing Mating

0.050 (1.27mm)

Montaj

Surface Mount

Contact Shape

Square

Connector Type

Receptacle

Insulation Color

Black

Insulation Height

0.246 6.25mm

Seri

har-flex®

Pitch Mating

0.050 1.27mm

Housing Material

Liquid Crystal Polymer

Fastening Type

Push-Pull

Pozisyon Sayısı

50

Terminal

Solder

Stack Height Mating

8mm ~ 11mm

Mating Contact Pitch

0.05 inch

Ambalaj

Cut Tape (CT)

Reach Svhc

No SVHC

Pcb Contact Row Spacing

5.4864 mm

Polarization Key

POLARIZED HOUSING

Akım Değeri

1.5A

Number Of Conductors

ONE

Orientation

Straight

Reliability

COMMERCIAL

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Contact Type

Female Socket

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Insulation Materials

Liquid Crystal Polymer (LCP)

Stack Height

6.25mm

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Contact Materials

Copper Alloy

Özellikler

Board Guide, Pick and Place, Solder Retention

Insulation Resistance

10000000000Ohm

Montaj Tipi

Surface Mount
