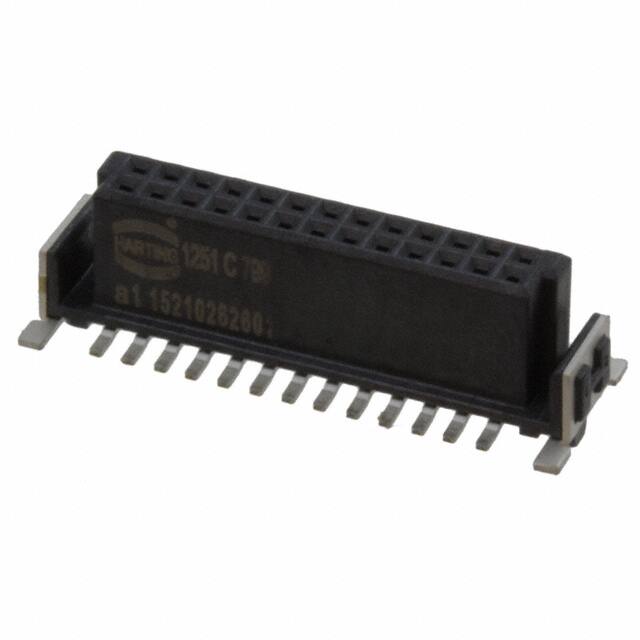

15210262601000

Specifications

Pcb Contact Row Spacing

5.4864 mm

Withdrawl Forcemin

.5004 N

Din Conformance

NO

Contact Type

Female Socket

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Durability

500 Cycles

Contact Materials

Copper Alloy

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Number Of Pcb Rows

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Contact Shape

Square

Insulation Color

Black

Seri

har-flex®

Housing Material

Liquid Crystal Polymer

Mating Contact Pitch

0.05 inch

Stack Height Mating

8mm ~ 11mm

Mixed Contacts

NO

Ambalaj

Cut Tape (CT)

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Akım Değeri

2A

Number Of Conductors

ONE

Mil Conformance

NO

Orientation

Straight

Reliability

COMMERCIAL

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Stack Height

6.25mm

Özellikler

Board Guide, Pick and Place, Solder Retention

Insulation Resistance

10000000000Ohm

Montaj Tipi

Surface Mount

Contact Finish Post

Tin

Applications

General Purpose
