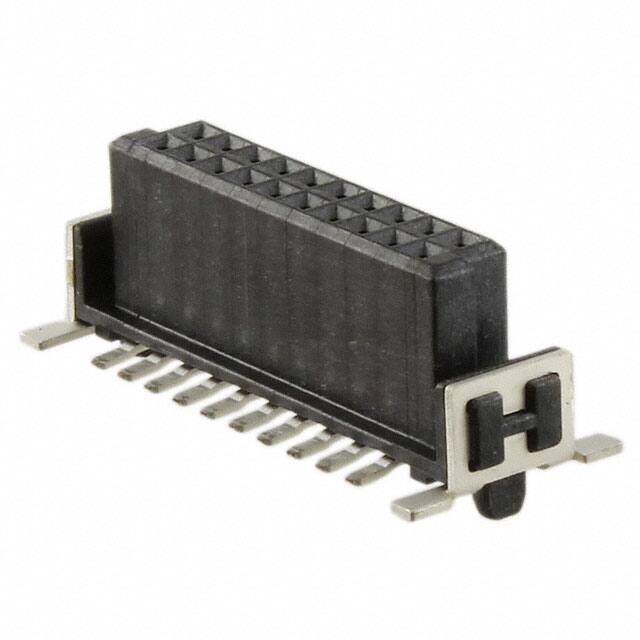

15210202601000

Specifications

Montaj Tipi

Surface Mount

Insulation Resistance

10000000000Ohm

Özellikler

Board Guide, Pick and Place, Solder Retention

Applications

General Purpose

Contact Finish Post

Tin

Body Length Or Diameter

0.7 inch

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

4 Weeks

Number Of Conductors

ONE

Akım Değeri

2A

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Orientation

Straight

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Stack Height

6.25mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Pitch Mating

0.050 1.27mm

Insulation Height

0.246 6.25mm

Fastening Type

Push-Pull

Terminal

Solder

Pozisyon Sayısı

20

Total Number Of Contacts

20

Montaj

Surface Mount

Row Spacing Mating

0.050 (1.27mm)

Style

Board to Board or Cable

Connector Type

Receptacle

Insertion Forcemax

.5004 N

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Pcb Contact Row Spacing

5.4864 mm

Withdrawl Forcemin

.5004 N

Contact Materials

Copper Alloy

Durability

500 Cycles

Pcb Contact Pattern

RECTANGULAR

Contact Type

Female Socket

Number Of Positions Loaded

All

Seri

har-flex®
