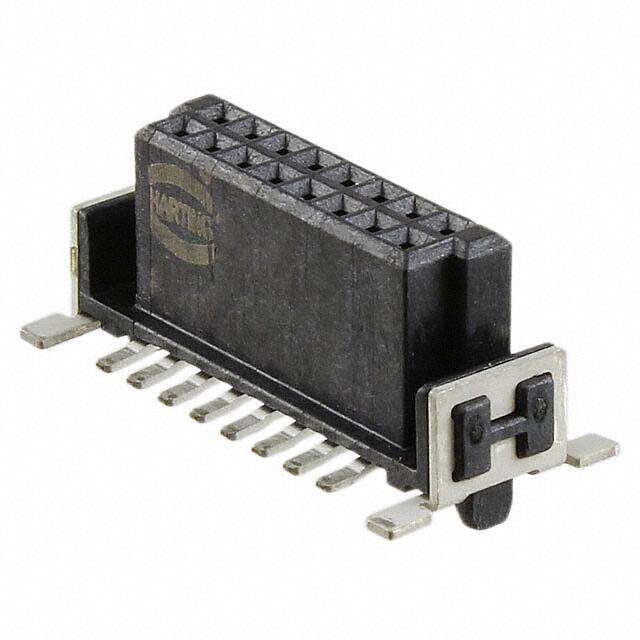

15210162601000

Specifications

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Pcb Contact Row Spacing

5.4864 mm

Durability

500 Cycles

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Contact Type

Female Socket

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.5004 N

Housing Material

Liquid Crystal Polymer

Insulation Color

Black

Seri

har-flex®

Ambalaj

Cut Tape (CT)

Stack Height Mating

8mm ~ 11mm

Mating Contact Pitch

0.05 inch

Number Of Pcb Rows

2

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Contact Finish Post

Tin

Applications

General Purpose

Insulation Resistance

10000000000Ohm

Montaj Tipi

Surface Mount

Özellikler

Board Guide, Pick and Place, Solder Retention

Body Length Or Diameter

0.6 inch

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

4 Weeks

Kurşunsuz

Lead Free

Orientation

Straight

Reliability

COMMERCIAL

Number Of Conductors

ONE

Polarization Key

POLARIZED HOUSING

Akım Değeri

2A

Stack Height

6.25mm

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Pitch Mating

0.050 1.27mm
