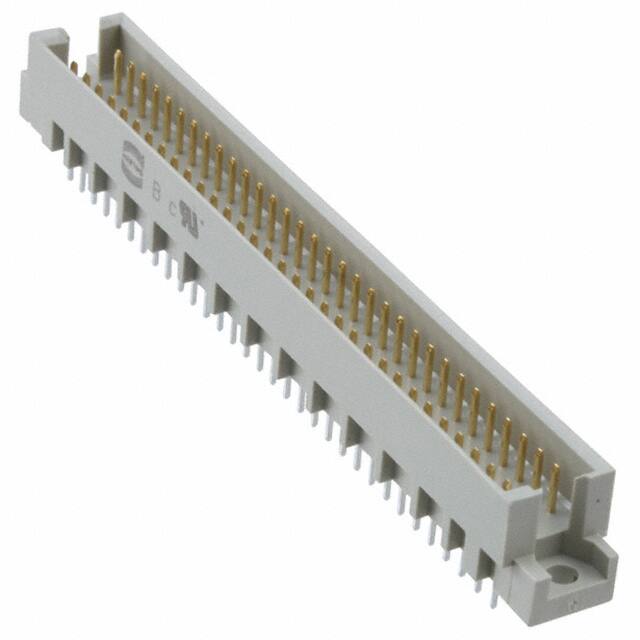

09731646903

Specifications

Sıra Sayısı

3

Reference Standard

VDE,CSA

Withdrawl Forcemin

1.5568 N

Ambalaj

Bulk

Contact Finish

Gold

Terminal

Solder

Uzunluk

95mm

Lead Length

4mm

Rated Current Signal

2A

Name Of Rows Loaded

A,C

Working Voltage

250V

Dielectric Withstanding Voltage

1000VAC V

Akım Değeri

2A

Flammability Rating

UL94 V-0

Contact Resistance

15MOhm

Connector Type

Header, Male Pins

Iec Conformance

NO

Test Voltage

1kV

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Mating Contact Row Spacing

0.1 inch

JESD-609 Kodu

e4

Max Current Rating

2A

Level Class

2

Din Conformance

YES

Voltage Rated Dc

250V

Kurşunsuz Kodu

yes

Montaj

Panel, Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

11.1mm

Pozisyon Sayısı

96

Number Of Pcb Rows

3

Number Of Positions Loaded

64

Min. Çalışma Sıcaklığı

-65°C

Insulation Resistance

1000000000000Ohm

Onay Kuruluşu

IEC

Length Tail

4mm

Seri

DIN 41612

Lead Pitch

2.54mm

Mil Conformance

NO
