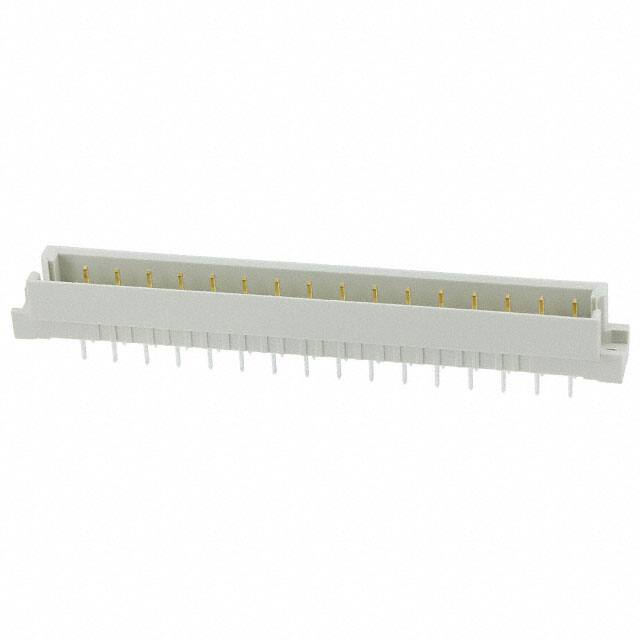

09731326903

Specifications

Connector Type

Header, Male Pins

Akım Değeri

2A

Flammability Rating

UL94 V-0

Contact Resistance

15mOhm

Length Termination

0.157 inch

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Insulation Resistance

1000000000000Ohm

Material Flammability Rating

UL94 V-0

Name Of Rows Loaded

A,C

Terminal

Wire Wrap

Number Of Positions Loaded

All

Body Depth

0.457 inch

Contact Finish

Gold or Gold-Palladium

Sıra Sayısı

3

Reference Standard

VDE,CSA

Ambalaj

Bulk

Withdrawl Forcemin

1.5568 N

Çalışma Sıcaklığı

-55°C~125°C

Number Of Pcb Rows

3

Contact Plating

Gold

Pozisyon Sayısı

32

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Parça Durumu

Active

Mixed Contacts

NO

Montaj

Through Hole

Mating Contact Row Spacing

0.1 inch

Fabrika Tedarik Süresi

7 Weeks

Total Number Of Contacts

32

Din Conformance

YES

Level Class

2

Insertion Forcemax

1.5568 N

Pitch

0.100 2.54mm

Ul Flammability Code

94V-0

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Montaj Tipi

Through Hole

Iec Conformance

NO

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant
