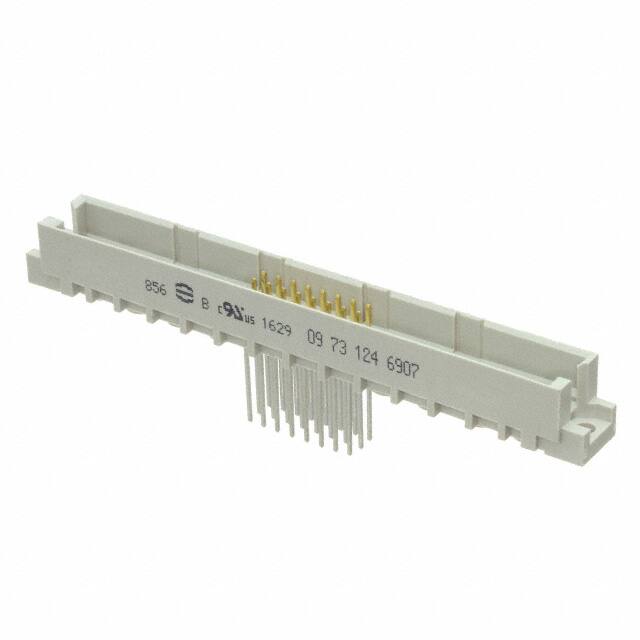

09731246907

Specifications

Number Of Positions Loaded

24

Terminal

Solder

Name Of Rows Loaded

A,B,C

Durability

400 Cycles

Material Flammability Rating

UL94 V-0

Insulation Resistance

1000000000000Ohm

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Reference Standard

UL, CSA

Sıra Sayısı

3

Contact Finish

Gold-Palladium

Body Depth

0.457 inch

Connector Type

Header, Male Pins

Dielectric Withstanding Voltage

1000VAC V

Seri

DIN 41612

Polarization Key

ENDS

ECCN Kodu

EAR99

Total Number Of Contacts

32

Din Conformance

YES

Level Class

2

Fabrika Tedarik Süresi

7 Weeks

Mating Contact Row Spacing

0.1 inch

Style

M

RoHS Durumu

ROHS3 Compliant

Mil Conformance

NO

Iec Conformance

NO

Montaj Tipi

Through Hole

Pcb Contact Pattern

RECTANGULAR

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Pitch

0.100 2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Rating Amps

2A

Pozisyon Sayısı

32 (24 + 8 Coax or Power)

Contact Materials

COPPER ALLOY

Number Of Pcb Rows

3

Mixed Contacts

YES

Contact Finish Thickness

Flash

Parça Durumu

Active

Filter Feature

NO

Option

GENERAL PURPOSE
