Volume pricing
- 1+ pcs$6.06
- 10+ pcs$5.72
- 100+ pcs$5.39
- 500+ pcs$5.09
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

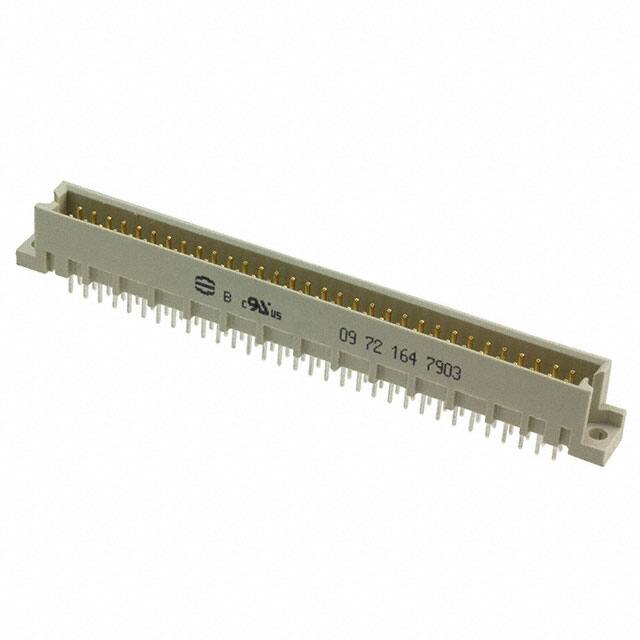

Specifications
- Terminal
- Solder
- Uzunluk
- 95mm
- Name Of Rows Loaded
- A,B
- Material Flammability Rating
- UL94 V-0
- Rated Current Signal
- 2A
- Withdrawl Forcemin
- 1.5568 N
- Çalışma Sıcaklığı
- -55°C~125°C
- Ambalaj
- Bulk
- Reference Standard
- VDE,CSA
- Sıra Sayısı
- 2
- Contact Finish
- Gold or Gold-Palladium
- Connector Type
- Header, Male Pins
- Dielectric Withstanding Voltage
- 1000VAC V
- Flammability Rating
- UL94 V-0
- Contact Resistance
- 15mOhm
- Akım Değeri
- 2A
- ECCN Kodu
- EAR99
- Din Conformance
- YES
- Level Class
- 3
- Mating Contact Row Spacing
- 0.1 inch
- JESD-609 Kodu
- e4
- Max Current Rating
- 2A
- RoHS Durumu
- ROHS3 Compliant
- Iec Conformance
- NO
- Ul Flammability Code
- 94V-0
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Depth
- 8.6mm
- Pozisyon Sayısı
- 64
- Contact Plating
- Gold
- Number Of Pcb Rows
- 2
- Montaj
- Through Hole
- Kurşunsuz Kodu
- yes
- Option
- GENERAL PURPOSE
- Number Of Positions Loaded
- All
- Reliability
- COMMERCIAL
- Insulation Resistance
- 1000000000000Ohm
- Polarization Key
- POLARIZED HOUSING
- Total Number Of Contacts
- 64
- Fabrika Tedarik Süresi
- 7 Weeks
- Mil Conformance
- NO
