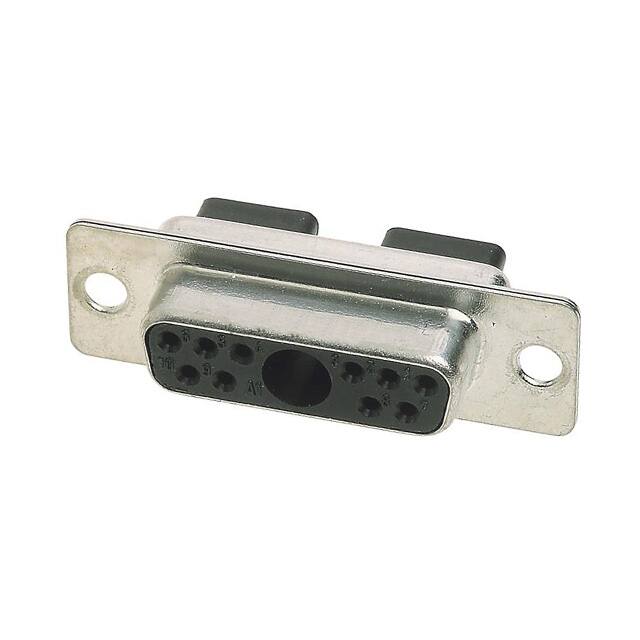

09692020111

Specifications

Montaj Tipi

Free Hanging (In-Line)

Sıra Sayısı

2

Mil Conformance

NO

Iec Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

11 (10 + 1 Coax or Power)

Akım Değeri

5A

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

YES

Note

Contacts Not Included

Flange Feature

Housing/Shell (Unthreaded)

Shell Size Connector Layout

2 DA A - 11C1 11W1

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Option

GENERAL PURPOSE

Contact Type

Signal and Coax or Power

Shell Material Finish

Steel, Tin Plated

Contact Materials

NOT SPECIFIED

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

YES

Genişlik

12.5mm

Gender

Receptacle

Filter Feature

NO

Housing Material

Steel

Connector Style

D-Sub, Combo

Ul Flammability Code

94V-0

Connector Type

Receptacle for Female Contacts

Empty Shell

NO

Total Number Of Contacts

11

Depth

16.9mm

Kurşunsuz Kodu

yes

Uzunluk

39.1mm

Ambalaj

Bulk

Contact Finish Mating

NOT SPECIFIED

Termination Type

CRIMP

Fabrika Tedarik Süresi

9 Weeks

Montaj

Free Hanging

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant
