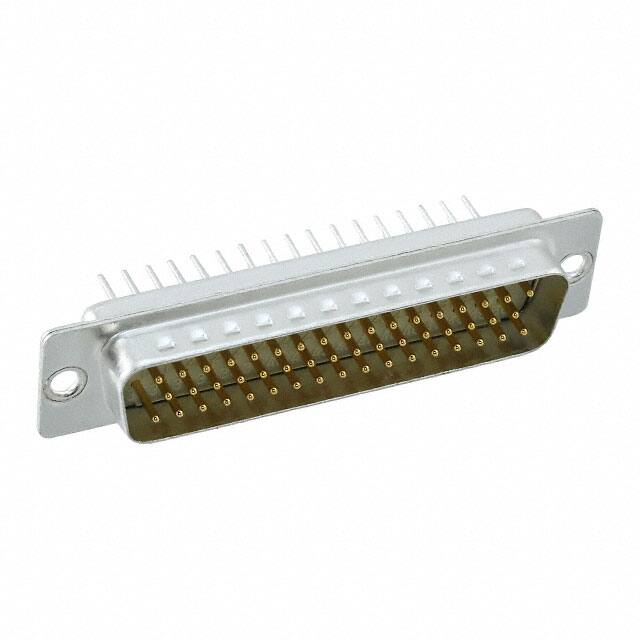

09670505654

Specifications

Number Of Pcb Rows

3

Flange Feature

Housing/Shell (Unthreaded)

JESD-609 Kodu

e4

Mixed Contacts

NO

Shell Size Connector Layout

5 DD D

Body Breadth

0.606 inch

Contact Type

Signal

Contact Materials

Copper Alloy

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

YES

ECCN Kodu

EAR99

Mating Contact Pitch

0.109 inch

Additional Feature

STANDARDS: DIN 41652; IEC 60807

Contact Plating

Gold

Reference Standard

UL

Iec Conformance

YES

Çalışma Sıcaklığı

-55°C~125°C

Orientation

Straight

Pozisyon Sayısı

50

Total Number Of Contacts

50

Empty Shell

NO

Bodyshell Style

RECEPTACLE

Ambalaj

Bulk

Özellikler

Grounding Indents

Kurşunsuz Kodu

yes

Body Depth

0.197 inch

Fabrika Tedarik Süresi

13 Weeks

RoHS Durumu

ROHS3 Compliant

Pcb Contact Pattern

STAGGERED

Gender

Male

Filter Feature

NO

Connector Type

Plug, Male Pins

Ul Flammability Code

94V-0

Contact Resistance

10mOhm

Shell Material Finish

Steel

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole

Terminal

Solder

Material Flammability Rating

UL94 V-0
