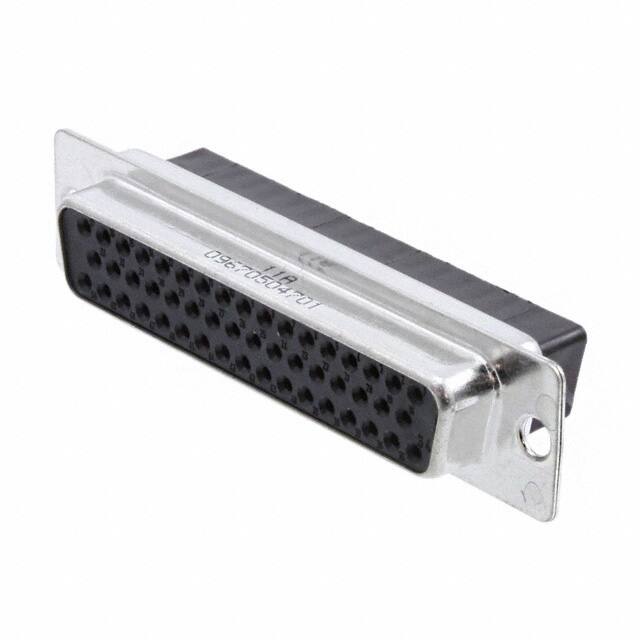

09670504701

Specifications

Yükseklik

15.4mm

Contact Type

Signal

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

NOT SPECIFIED

Din Conformance

NO

Flange Feature

Housing/Shell (Unthreaded)

Mixed Contacts

NO

Note

Contacts Not Included

Wire Gauge Max

24 AWG

Shell Size Connector Layout

5 DD D

Body Breadth

0.606 inch

Iec Conformance

NO

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~125°C

Orientation

Straight

Pozisyon Sayısı

50

Mating Contact Pitch

0.108 inch

Additional Feature

STANDARDS: DIN 41652; IEC 60807

Contact Finish Mating

NOT SPECIFIED

Fabrika Tedarik Süresi

4 Weeks

RoHS Durumu

ROHS3 Compliant

Total Number Of Contacts

50

Bodyshell Style

PLUG

Empty Shell

YES

Uzunluk

66.9mm

Ambalaj

Bulk

Kurşunsuz Kodu

yes

Ul Flammability Code

94V-0

Connector Type

Receptacle for Female Contacts

Genişlik

15.4mm

Gender

Female

Filter Feature

NO

Shell Material Finish

Steel, Tin Plated

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Option

GENERAL PURPOSE

Mil Conformance

NO

Sıra Sayısı

3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Panel Mount

Terminal

Crimp
