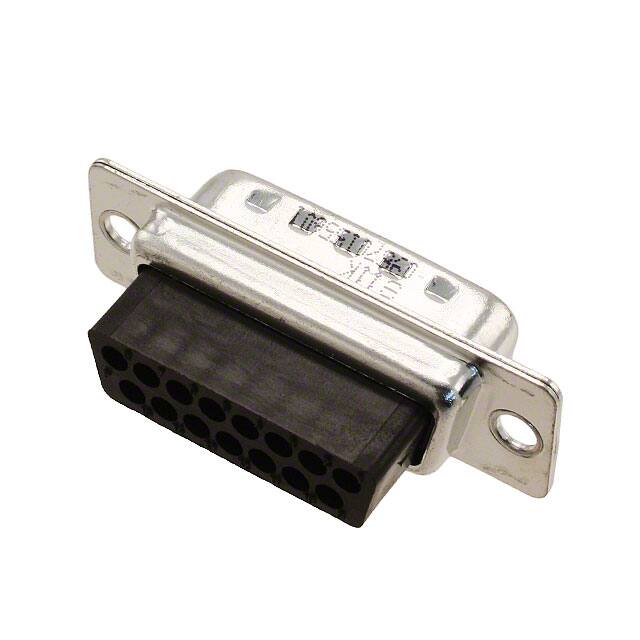

09670155601

Specifications

Montaj

Panel

Bodyshell Style

RECEPTACLE

Mating Contact Pitch

0.108 inch

Voltage Rated Dc

125V

Iec Conformance

NO

Total Number Of Contacts

15

Body Plating

Tin

Working Voltage

125V

Contact Type

Signal

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

39.1mm

Empty Shell

YES

Sıra Sayısı

2

Özellikler

Grounding Indents

Connector Type

Plug for Male Contacts

Material

Steel

Shell Size Connector Layout

2 DA A

Mil Conformance

NO

Note

Contacts Not Included

Insulation Resistance

10000000000Ohm

Contact Design

STRIP OR LOOSE

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Tray

Number Of Poles

15

Mixed Contacts

NO

Contact Plating

Gold

Montaj Tipi

Panel Mount

Fabrika Tedarik Süresi

4 Weeks

Filter Feature

NO

Shell Finish

TIN

Genişlik

12.5mm

Kurşunsuz Kodu

yes

Reference Standard

UL

Terminal

Crimp

Contact Resistance

10mOhm

Wire Gauge Min

20 AWG

Reach Svhc

No SVHC

Shell Material Finish

Steel, Tin Plated

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Gender

Male
