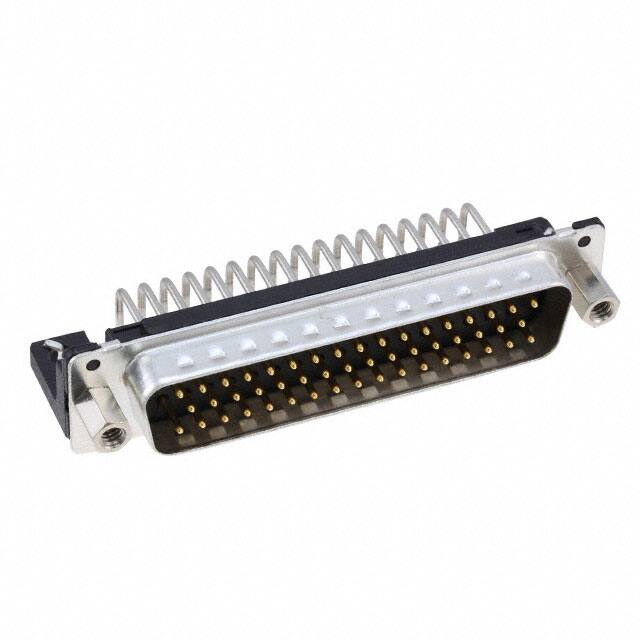

09665627817

Specifications

Shell Material Finish

Steel

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Gender

Male

Pcb Contact Row Spacing

2.54 mm

Length Termination

0.114 inch

Din Conformance

YES

Montaj Tipi

Through Hole, Right Angle

Fabrika Tedarik Süresi

15 Weeks

Filter Feature

NO

Shell Finish

TIN

Kurşunsuz Kodu

yes

Reference Standard

UL

Terminal

Solder

Contact Resistance

10mOhm

Contact Materials

Copper Alloy

Dielectric Withstanding Voltage

1000VAC V

Flange Feature

Mating Side, Female Screwlock (4-40)

Body Depth

0.551 inch

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

Connector Style

D-Sub

Option

GENERAL PURPOSE

Additional Feature

STANDARDS: DIN 41652; IEC 60807, LOW PROFILE

Housing Material

PBT

Contact Finish Mating

NOT SPECIFIED

Pcb Contact Pattern

STAGGERED

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Signal

Current Rating Amps

7.5A

Sıra Sayısı

3

Empty Shell

NO

Kontak Formu

Machined

Özellikler

Board Lock, Grounding Indents

Montaj

Through Hole

Bodyshell Style

RECEPTACLE

Mating Contact Pitch

0.109 inch

Mating Contact Row Spacing

0.112 inch

ECCN Kodu

EAR99

Iec Conformance

YES
