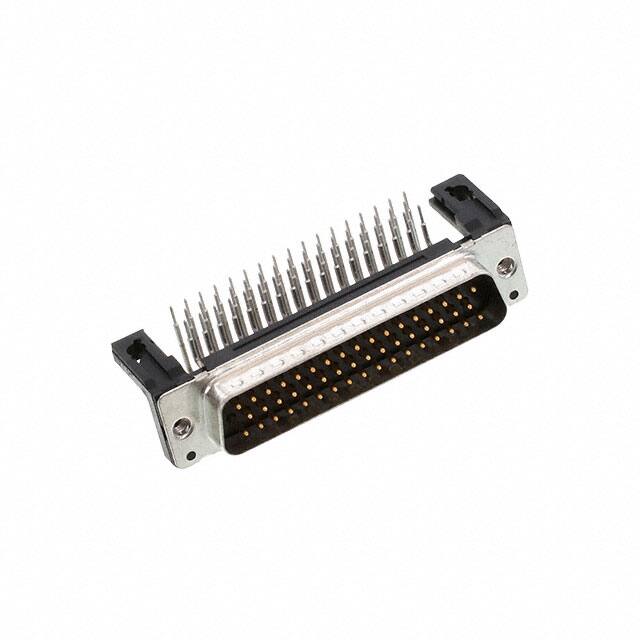

09665226801

Specifications

Flange Feature

Housing/Shell (M3)

Ul Flammability Code

94V-0

Body Depth

0.689 inch

RoHS Durumu

ROHS3 Compliant

Contact Materials

Copper Alloy

Dielectric Withstanding Voltage

1000VAC V

Additional Feature

STANDARDS: DIN 41652; IEC 60807

Contact Finish Mating

NOT SPECIFIED

Housing Material

PBT

Pcb Contact Pattern

STAGGERED

Parça Durumu

Active

Connector Style

D-Sub

Option

GENERAL PURPOSE

Backset Spacing

0.409 (10.40mm)

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Pcb Contact Row Spacing

2.54 mm

Length Termination

0.114 inch

Din Conformance

YES

Shell Material Finish

Steel

Kurşunsuz Kodu

yes

Reference Standard

UL

Terminal

Solder

Contact Resistance

10mOhm

Filter Feature

NO

Fabrika Tedarik Süresi

15 Weeks

Montaj Tipi

Through Hole, Right Angle

Shell Finish

TIN

Mixed Contacts

NO

Terminal Adımı

2.7686mm

Number Of Pcb Rows

3

Ambalaj

Bulk

Çalışma Sıcaklığı

-55°C~125°C

Connector Type

Plug, Male Pins

Shell Size Connector Layout

5 DD D

Mil Conformance

NO

Insulation Resistance

10000000000Ohm

Sıra Sayısı

3

Empty Shell

NO

Kontak Formu

Machined

Özellikler

Grounding Indents
