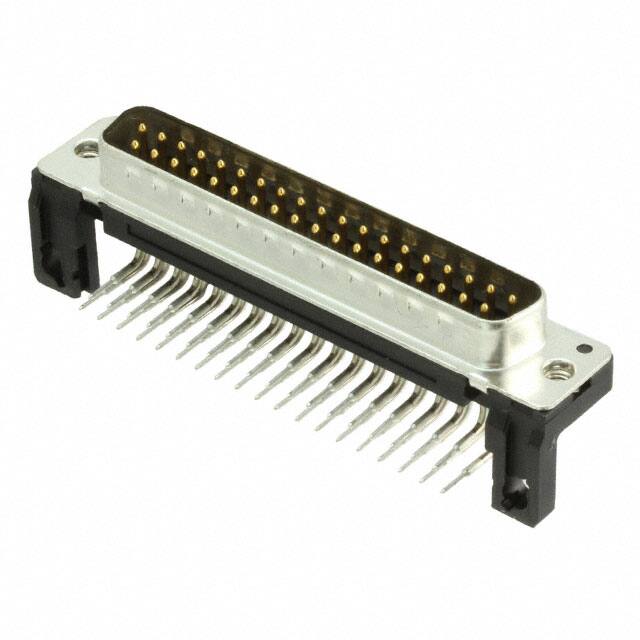

09664227801

Specifications

Kontak Formu

Machined

Özellikler

Grounding Indents

Empty Shell

NO

Sıra Sayısı

2

Withdrawl Forcemin

3.336 N

Current Rating Amps

7.5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Signal

Body Breadth

0.508 inch

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

37

Total Number Of Contacts

37

Iec Conformance

YES

Montaj

Through Hole

Bodyshell Style

RECEPTACLE

ECCN Kodu

EAR99

Mating Contact Pitch

0.109 inch

Mixed Contacts

NO

Number Of Pcb Rows

2

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~125°C

Shell Size Connector Layout

4 DC C

Insulation Resistance

10000000000Ohm

Mil Conformance

NO

Connector Type

Plug, Male Pins

Din Conformance

YES

Length Termination

0.114 inch

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Shell Material Finish

Steel

HTS Kodu

8536.69.40.30

Kurşunsuz Kodu

yes

Reference Standard

UL

Terminal

Solder

Contact Resistance

10mOhm

Filter Feature

NO

Montaj Tipi

Through Hole, Right Angle

Fabrika Tedarik Süresi

15 Weeks

Shell Finish

TIN

RoHS Durumu

ROHS3 Compliant

Flange Feature

Housing/Shell (M3)
