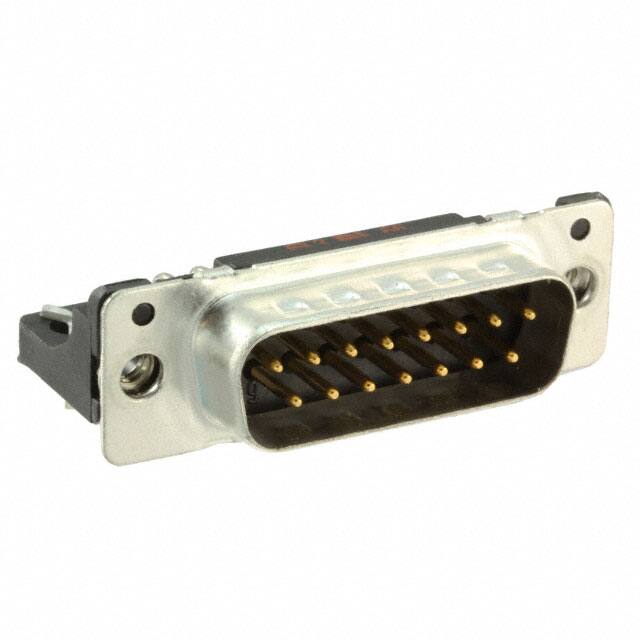

09662627816

Specifications

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

15

Pozisyon Sayısı

15

Iec Conformance

YES

Montaj

Through Hole

ECCN Kodu

EAR99

Mating Contact Pitch

0.108 inch

Bodyshell Style

RECEPTACLE

Özellikler

Board Lock, Grounding Indents

Kontak Formu

Machined

Empty Shell

NO

Sıra Sayısı

2

Withdrawl Forcemin

3.336 N

Current Rating Amps

7.5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Signal

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Insulation Resistance

10000000000Ohm

Shell Size Connector Layout

2 DA A

Connector Type

Plug, Male Pins

Mixed Contacts

NO

Number Of Pcb Rows

2

Ambalaj

Tray

Reference Standard

UL

Kurşunsuz Kodu

yes

Contact Resistance

10mOhm

Terminal

Solder

Shell Finish

TIN

Filter Feature

NO

Fabrika Tedarik Süresi

15 Weeks

Montaj Tipi

Through Hole, Right Angle

Din Conformance

YES

Length Termination

0.114 inch

Body Length Or Diameter

1.543 inch

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Shell Material Finish

Steel

HTS Kodu

8536.69.40.30

Insertion Forcemax

3.336 N

Parça Durumu

Active
