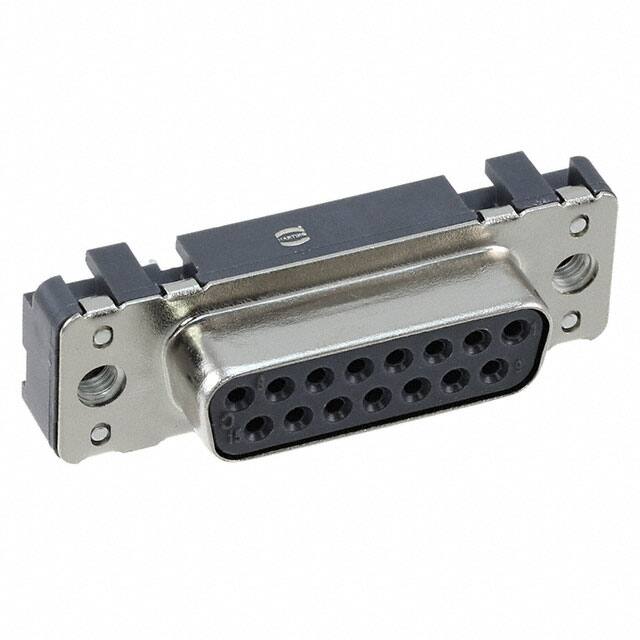

09662556511

Specifications

Parça Durumu

Active

Insertion Forcemax

3.336 N

Housing Material

Glass

Pcb Contact Pattern

STAGGERED

Option

GENERAL PURPOSE

Connector Style

D-Sub

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Flange Feature

Housing/Shell (M3)

Contact Materials

Copper Alloy

Dielectric Withstanding Voltage

1000VAC V

Terminal

Solder

Contact Resistance

10mOhm

Kurşunsuz Kodu

yes

Reference Standard

UL

Filter Feature

NO

Fabrika Tedarik Süresi

7 Weeks

Montaj Tipi

Through Hole

Shell Finish

TIN

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Length Termination

0.114 inch

Din Conformance

YES

Dielectric Material

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Body Length Or Diameter

1.547 inch

Shell Material Finish

Steel

HTS Kodu

8536.69.40.30

Çalışma Sıcaklığı

-55°C~125°C

Shell Size Connector Layout

2 DA A

Mil Conformance

NO

Insulation Resistance

10000000000Ohm

Connector Type

Receptacle, Female Sockets

Mixed Contacts

NO

Ambalaj

Bulk

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

15

Total Number Of Contacts

15

Contact Finish

Gold

Iec Conformance

NO

Bodyshell Style

PLUG
