Volume pricing
- 1+ pcs$4.49
- 10+ pcs$4.24
- 100+ pcs$4.00
- 500+ pcs$3.77
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

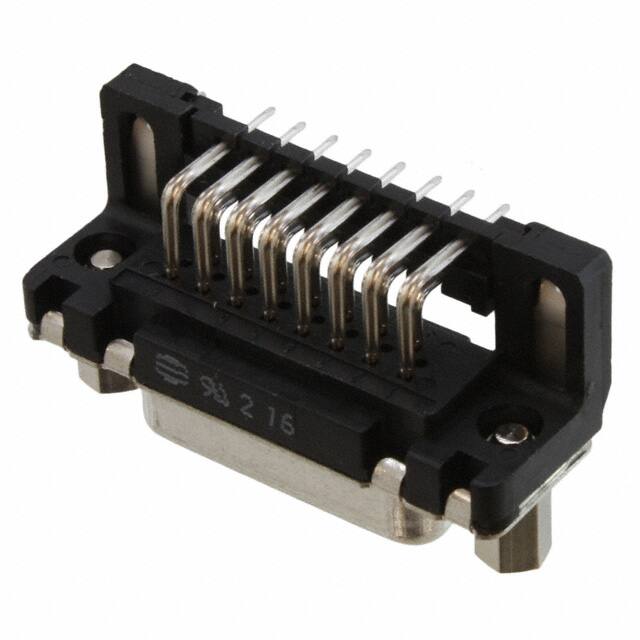

Specifications
- Pitch
- 2.54mm
- Çalışma Sıcaklığı
- -55°C~125°C
- Shell Size Connector Layout
- 2 DA A
- Mil Conformance
- NO
- Connector Type
- Receptacle, Female Sockets
- Contact Plating
- Gold
- Mixed Contacts
- NO
- Number Of Pcb Rows
- 2
- Ambalaj
- Tray
- Material Flammability Rating
- UL94 V-0
- Total Number Of Contacts
- 15
- Iec Conformance
- YES
- Montaj
- Through Hole
- Bodyshell Style
- PLUG
- ECCN Kodu
- EAR99
- Kontak Formu
- Stamped
- Özellikler
- Board Lock
- Sıra Sayısı
- 2
- Empty Shell
- NO
- Uzunluk
- 39.5mm
- Withdrawl Forcemin
- 3.336 N
- Current Rating Amps
- 6.5A
- Contact Type
- Signal
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Parça Durumu
- Active
- Depth
- 21.2mm
- Insertion Forcemax
- 3.336 N
- Test Voltage
- 1kV
- Contact Finish Mating
- NOT SPECIFIED
- Housing Material
- Polybutylene
- Pcb Contact Pattern
- STAGGERED
- Orientation
- Right Angle
- Option
- GENERAL PURPOSE
- Terminal Sayısı
- 15
- Backset Spacing
- 0.409 (10.40mm)
- Connector Style
- D-Sub
- RoHS Durumu
- ROHS3 Compliant
- Flange Feature
- Mating Side, Female Screwlock (4-40)
- Ul Flammability Code
- 94V-0
- Contact Materials
- Copper Alloy
