Volume pricing
- 1+ pcs$5.42
- 10+ pcs$5.11
- 100+ pcs$4.82
- 500+ pcs$4.55
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

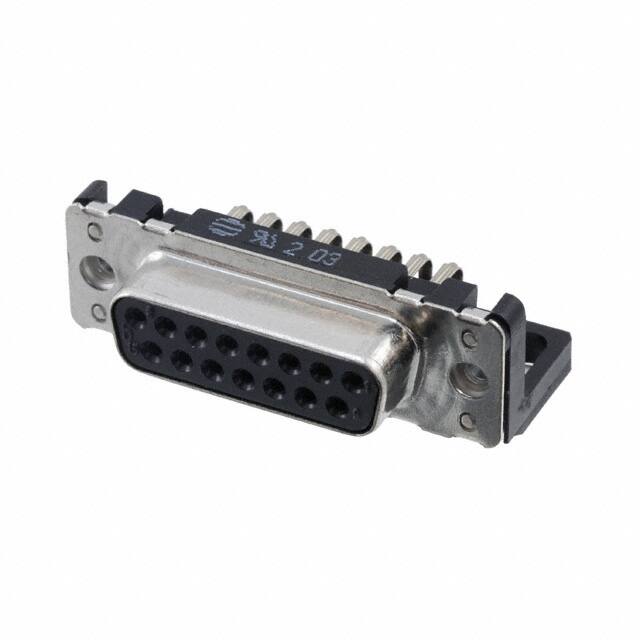

Specifications
- Connector Style
- D-Sub
- Option
- GENERAL PURPOSE
- Orientation
- Right Angle
- Backset Spacing
- 0.409 (10.40mm)
- Terminal Sayısı
- 15
- Contact Finish Mating
- NOT SPECIFIED
- Housing Material
- Polybutylene
- Pcb Contact Pattern
- STAGGERED
- Body Material
- Metal
- Test Voltage
- 1kV
- Parça Durumu
- Active
- Insertion Forcemax
- 3.336 N
- Contact Materials
- Copper Alloy
- Body Depth
- 0.583 inch
- Ul Flammability Code
- 94V-0
- Flange Feature
- Housing/Shell (4-40)
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Through Hole, Right Angle
- Fabrika Tedarik Süresi
- 4 Weeks
- Filter Feature
- NO
- Shell Finish
- TIN
- Genişlik
- 13.6mm
- Akım Değeri
- 6A
- Number Of Ports
- 1
- Terminal
- Solder
- Kurşunsuz Kodu
- yes
- Reference Standard
- UL
- Reach Svhc
- No SVHC
- HTS Kodu
- 8536.69.40.30
- Shell Material Finish
- Steel
- Dielectric Material
- Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Yükseklik
- 12.5mm
- Gender
- Receptacle
- Din Conformance
- YES
- Connector Type
- Receptacle, Female Sockets
- Shell Size Connector Layout
- 2 DA A
- Mil Conformance
- NO
- Çalışma Sıcaklığı
- -55°C~125°C
- Pitch
- 2.54mm
- Ambalaj
- Bulk
