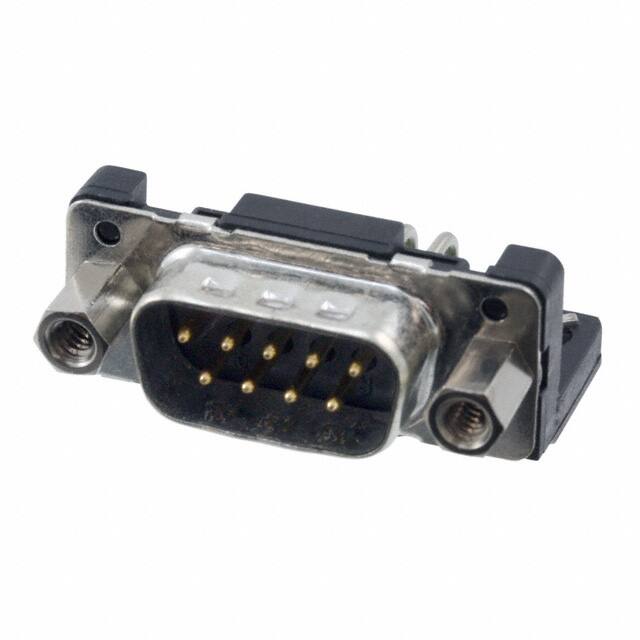

09661626813

Specifications

Akım Değeri

7A

Özellikler

Board Lock, Grounding Indents

Total Number Of Contacts

9

Din Conformance

YES

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Kontak Formu

Machined

Depth

21mm

Uzunluk

30.9mm

Shell Finish

TIN

Housing Material

Polybutylene

Empty Shell

NO

RoHS Durumu

ROHS3 Compliant

Yükseklik

12.9mm

Terminal

Solder

Contact Finish Mating

NOT SPECIFIED

Connector Type

Plug, Male Pins

Parça Durumu

Active

Montaj

Through Hole

Connector Style

D-Sub

Kurşunsuz Kodu

yes

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Withdrawl Forcemin

3.336 N

Body Breadth

0.508 inch

Shell Size Connector Layout

1 DE E

Mixed Contacts

NO

Montaj Tipi

Through Hole, Right Angle

Option

GENERAL PURPOSE

Bodyshell Style

RECEPTACLE

Number Of Pcb Rows

2

Iec Conformance

YES

Filter Feature

NO

Pitch

2.54mm

Sıra Sayısı

2

Number Of Ports

1

Pozisyon Sayısı

9

Insertion Forcemax

3.336 N

Contact Type

Signal

Contact Materials

Copper Alloy
