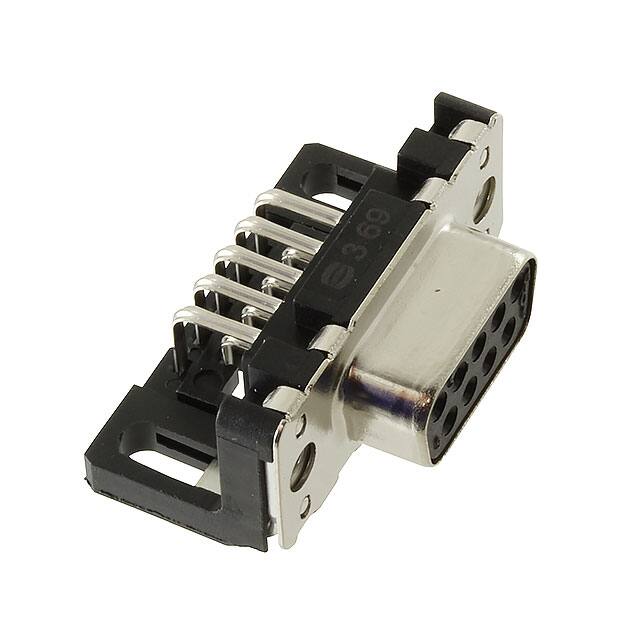

09661127601

Specifications

Mil Conformance

NO

Flange Feature

Housing/Shell (M3)

Fabrika Tedarik Süresi

7 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Gender

Receptacle

Ambalaj

Bulk

Orientation

Right Angle

Shell Material Finish

Steel

Contact Plating

Gold

Pcb Contact Pattern

STAGGERED

Number Of Ports

1

Terminal Sayısı

9

Sıra Sayısı

2

Current Rating Amps

6.5A

Contact Materials

Copper Alloy

Insertion Forcemax

3.336 N

Contact Type

Signal

Bodyshell Style

PLUG

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole, Right Angle

Mixed Contacts

NO

Shell Size Connector Layout

1 DE E

Backset Spacing

0.409 (10.40mm)

Iec Conformance

YES

Filter Feature

NO

Pitch

2.74mm

Number Of Pcb Rows

2

Genişlik

13.5mm

Withdrawl Forcemin

3.336 N

Connector Type

Receptacle, Female Sockets

Contact Finish Mating

NOT SPECIFIED

Kurşunsuz Kodu

yes

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Montaj

Through Hole

Parça Durumu

Active

Connector Style

D-Sub

Empty Shell

NO

Housing Material

Polybutylene

RoHS Durumu

ROHS3 Compliant

Terminal

Solder
