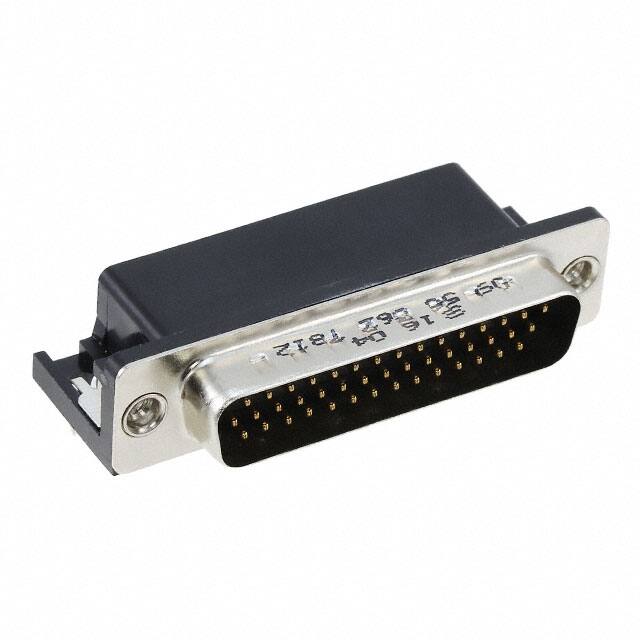

09563625812

Specifications

Mil Conformance

NO

Contact Gender

Male

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Body Length Or Diameter

2.106 inch

Option

GENERAL PURPOSE

Mating Contact Row Spacing

0.078 inch

Akım Değeri

2A

Ambalaj

Bulk

Pcb Contact Pattern

STAGGERED

Number Of Pcb Rows

3

Contact Finish

Gold or Gold-Palladium

Montaj Tipi

Through Hole, Right Angle

Rated Current Signal

2A

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Iec Conformance

NO

Çalışma Sıcaklığı

-40°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.09 inch

Body Breadth

0.509 inch

Backset Spacing

0.350 (8.89mm)

Connector Style

D-Sub, High Density

Insulation Resistance

5000000000Ohm

Pozisyon Sayısı

44

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

44

RoHS Durumu

ROHS3 Compliant

Flange Feature

Housing/Shell (4-40)

Montaj

Through Hole

Kontak Formu

Stamped

Parça Durumu

Active

Sıra Sayısı

3

Shell Material Finish

Steel, Nickel Plated

Contact Materials

Copper Alloy

Terminal Adımı

2.286mm

Özellikler

Board Lock, Grounding Indents

Connector Type

Plug, Male Pins

Shell Size Connector Layout

3 DB B High Density

Housing Material

PBT

Reliability

COMMERCIAL
