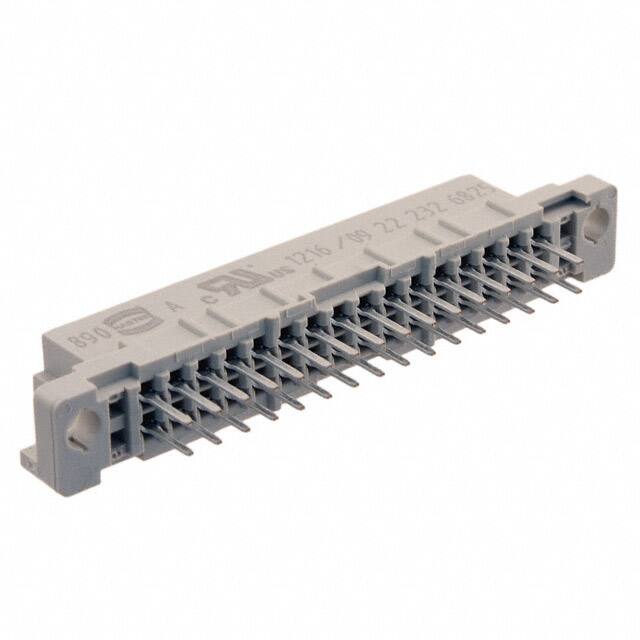

09222326825

Specifications

Ul Flammability Code

94V-0

Name Of Rows Loaded

A,B

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Iec Conformance

NO

Pitch

0.100 2.54mm

Insertion Forcemax

.9174 N

Parça Durumu

Active

Orientation

Straight

Material Insulation

Thermoplastic, Glass Filled

Uzunluk

54.9mm

Connector Type

Receptacle, Female Sockets

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Durability

400 Cycles

Seri

DIN 41612

Number Of Positions Loaded

All

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

9 Weeks

Min. Çalışma Sıcaklığı

-65°C

Length Tail

4.5mm

Hole Diameter

1 mm

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.315 inch

Flammability Rating

UL94 V-0

Insulation Resistance

1000000000000Ohm

Mating Contact Row Spacing

0.1 inch

Lead Pitch

2.54mm

Lead Length

4mm

Contact Plating

Gold

Gender

Receptacle

Sıra Sayısı

2

Withdrawl Forcemin

.9174 N

Terminal

Solder

Total Number Of Contacts

32

Style

2B

Montaj

Through Hole

Option

GENERAL PURPOSE
