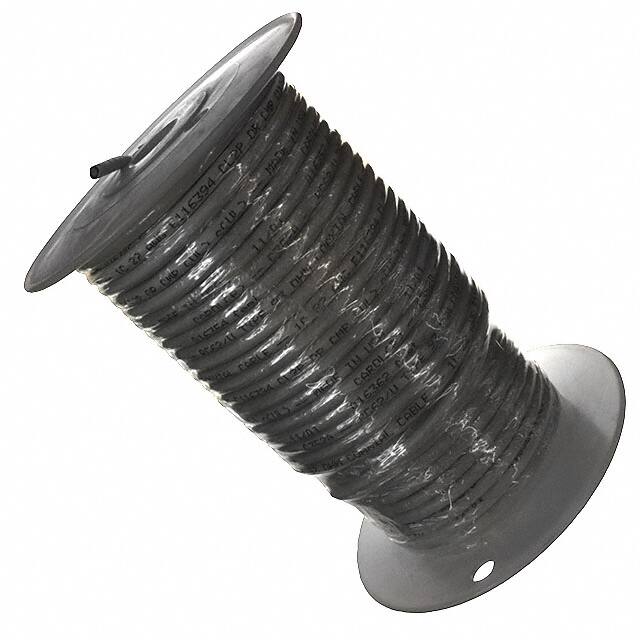

C3520.41.86

Specifications

Shield Coverage

95%

Wire Gauge

22 AWG (0.32mm2)

Insulation Diameter

5.1054 mm

Conductor Material

Steel, Copper Coated

Wirecable Gauge

22 AWG

Dielectric Material

Cellular (Foam) Fluoro-Polymer (Cellular FP)

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Empedans

93Ohms

Insulation Materials

PVC

Uzunluk

1000.0' 304.80m

Dielectric Diameter

0.140 (3.56mm)

Vop Velocity Of Propagation

84

RoHS Durumu

Non-RoHS Compliant

Usage

Network, RF Signal

Jacket Insulation Diameter

0.201 (5.11mm)

Shield Material

Copper, Bare

Jacket Color

Natural

Kurşunsuz

Exempt

Parça Durumu

Active

Montaj

Cable

Cable Types

Coaxial - Plenum

Conductor Strand

Solid

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shield Type

Braid

Cable Group

RG-62

Renk

Natural

Wirecable Type

Coaxial
