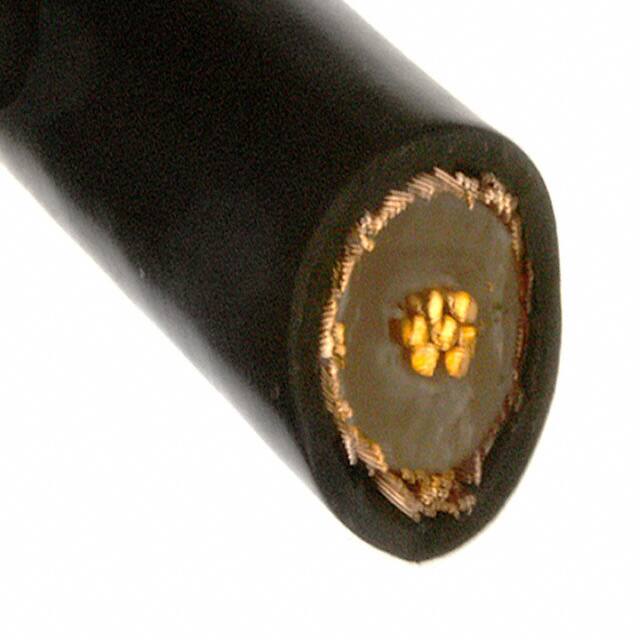

C1176A.41.01

Specifications

Insulation Materials

PVC

Shield Type

Braid

Cable Group

RG-213

Wirecable Type

Coaxial

Insulation Diameter

10.287 mm

Parça Durumu

Active

Shield Coverage

95%

Jacket Insulation Diameter

0.405 (10.29mm)

Cable Types

Coaxial

Uzunluk

1000.0' 304.80m

Empedans

50Ohms

Conductor Strand

7 Strands / 21 AWG

Shield Material

Copper, Bare

Usage

RF Signal

Jacket Color

Black

Montaj

Cable

Dielectric Material

Solid Polyethylene (PE)

Renk

Black

Vop Velocity Of Propagation

66

Nem Hassasiyeti (MSL)

1 (Unlimited)

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Dielectric Diameter

0.285 (7.24mm)

RoHS Durumu

RoHS Compliant

Wire Gauge

13 AWG (2.88mm2)

Conductor Material

Copper, Bare

Wirecable Gauge

13 AWG

Fabrika Tedarik Süresi

6 Weeks
