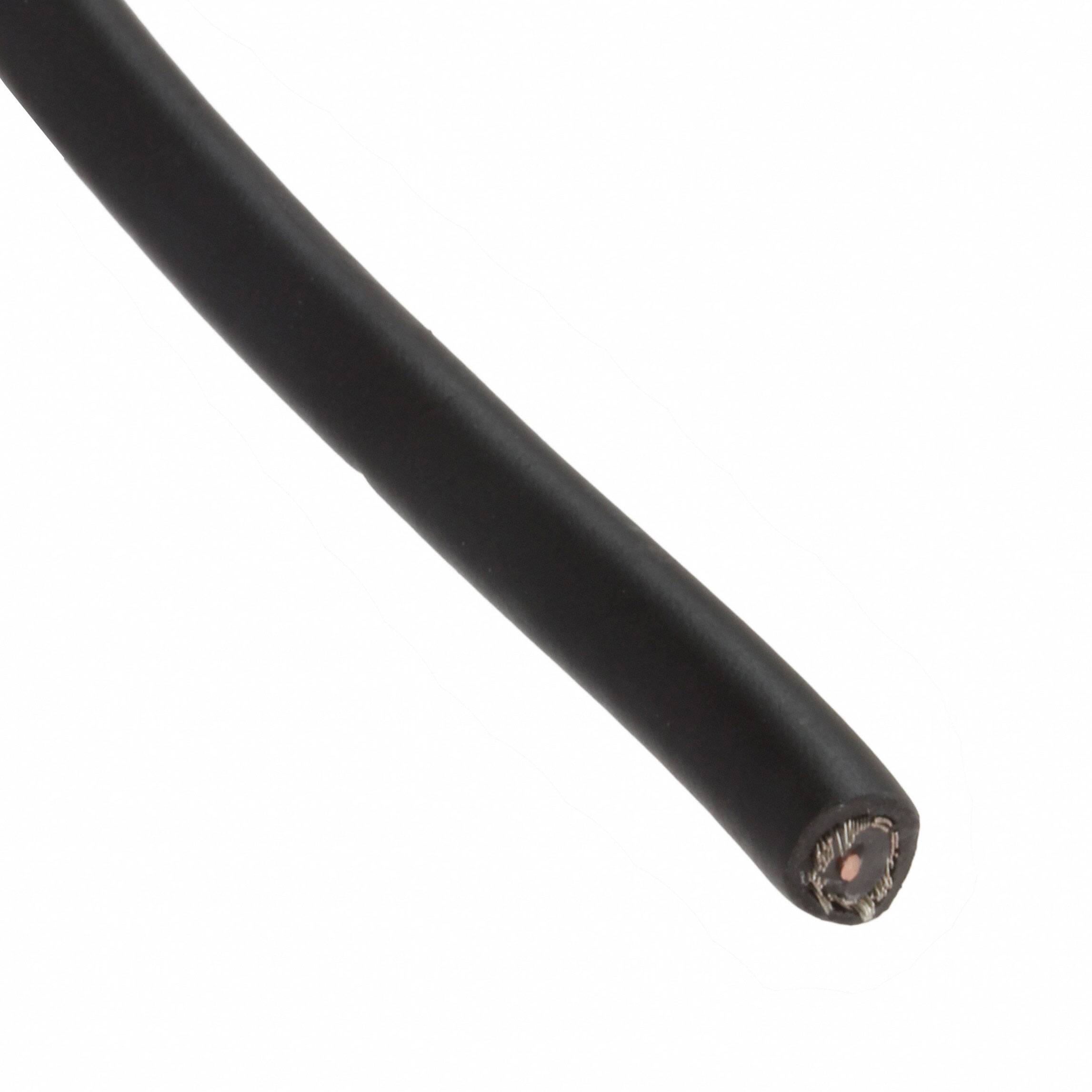

C1166.21.01

Specifications

Vop Velocity Of Propagation

66

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Dielectric Diameter

0.116 (2.95mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Wirecable Gauge

20 AWG

Wire Gauge

20 AWG (0.52mm2)

Conductor Material

Copper, Bare

Cable Group

RG-58

Insulation Materials

PVC

Shield Type

Braid

Wirecable Type

Coaxial

Insulation Diameter

4.953 mm

Parça Durumu

Active

Jacket Insulation Diameter

0.195 (4.95mm)

Shield Coverage

95%

Cable Types

Coaxial

Conductor Strand

Solid

Shield Material

Copper, Tinned

Usage

Network, RF Signal

Uzunluk

50.0' 15.24m

Empedans

50Ohms

Jacket Color

Black

Montaj

Cable

Dielectric Material

Solid Polyethylene (PE)

Renk

Black
