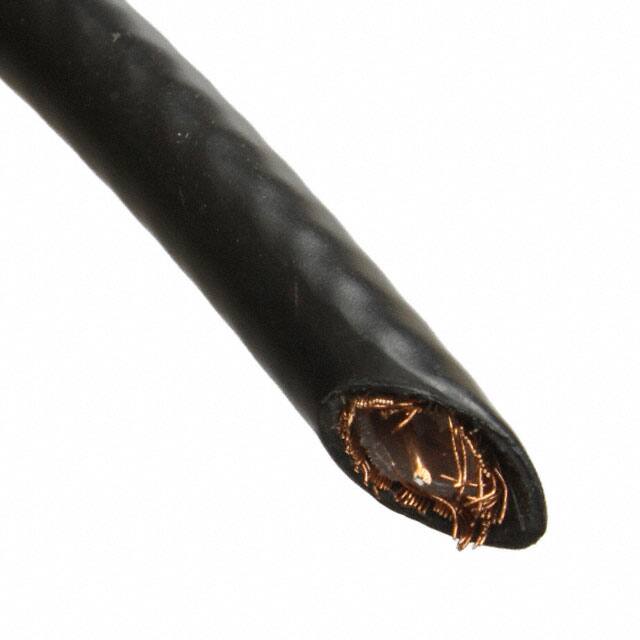

C1164.12.01

Specifications

Jacket Insulation Diameter

0.242 (6.15mm)

Shield Coverage

95%

Cable Types

Coaxial

Cable Group

RG-62

Shield Type

Braid

Insulation Materials

PVC

Wirecable Type

Coaxial

Parça Durumu

Discontinued

Insulation Diameter

6.1468 mm

Montaj

Cable

Dielectric Material

Semi Solid Polyethylene (SSP)

Renk

Black

Conductor Strand

Solid

Shield Material

Copper, Bare

Usage

Network, RF Signal

Empedans

93Ohms

Uzunluk

100.0' 30.48m

Jacket Color

Black

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Dielectric Diameter

0.144 (3.66mm)

Kurşunsuz

Contains Lead

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Vop Velocity Of Propagation

84

Wirecable Gauge

22 AWG

Wire Gauge

22 AWG (0.32mm2)

Conductor Material

Steel, Copper Coated
