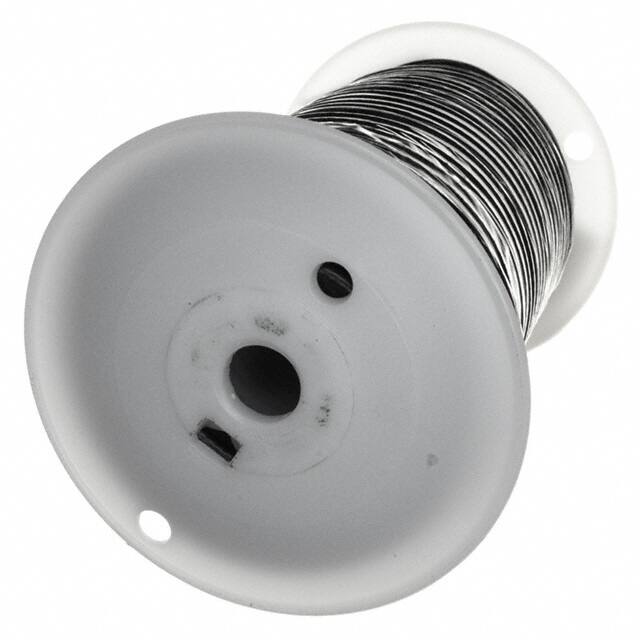

C1112.18.01

Specifications

Empedans

80Ohms

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Usage

RF Signal, Video

Wirecable Type

Coaxial

Parça Durumu

Obsolete

Dielectric Material

Cellular (Foam) Polyethylene (Cellular FPE)

Cable Types

Coaxial

Insulation Diameter

6.1468 mm

Shield Coverage

70%

Shield Type

Braid

Shield Material

Copper, Bare

Uzunluk

500.0' 152.40m

RoHS Durumu

Non-RoHS Compliant

Renk

Black

Montaj

Cable

Jacket Insulation Diameter

0.242 (6.15mm)

Wire Gauge

22 AWG (0.32mm2)

Cable Group

RG-59

Outside Diameter

6.15 mm

Wirecable Gauge

22 AWG

Vop Velocity Of Propagation

78

Conductor Material

Steel, Copper Coated

Reach Svhc

Unknown

Conductor Strand

Solid

Jacket Color

Black

Insulation Materials

PVC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Diameter

0.146 (3.71mm)
