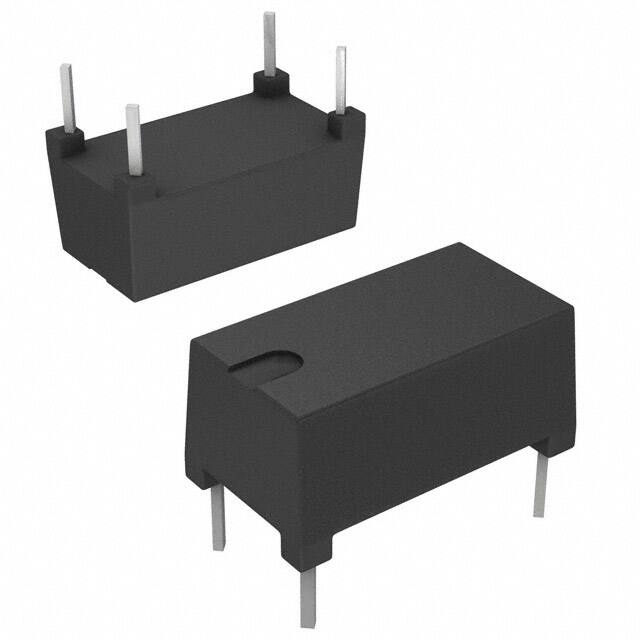

CNY65

Specifications

Collector Emitter Voltage Vceo

300mV

Çıkış Tipi

Transistor

Rise Fall Time Typ

3μs 5μs

Çalışma Sıcaklığı

-55°C~85°C

Current Dc Forward If Max

75mA

Output Current Per Channel

50mA

Montaj Tipi

Through Hole

Configuration

SINGLE

Forward Currentmax

0.075A

Number Of Channels

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Elements

1

Current Transfer Ratiomin

50% @ 5mA

Parça Durumu

Active

Giriş Tipi

DC

Yayın Yılı

2013

Voltage Forward Vf Typ

1.6V

Max Output Voltage

80V

Montaj

Through Hole

Turn On Turn Off Time Typ

6μs, 7μs

Kılıf / Paket

4-DIP (0.600, 15.24mm)

Fabrika Tedarik Süresi

20 Weeks

Current Transfer Ratio Max

300% @ 5mA

Ambalaj

Tube

Additional Feature

UL RECOGNIZED

RoHS Durumu

ROHS3 Compliant

Dark Currentmax

200nA

Pin Sayısı

4

Voltage Isolation

8200Vrms
