Volume pricing
- 1+ pcs$0.14
- 10+ pcs$0.14
- 100+ pcs$0.13
- 500+ pcs$0.12
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

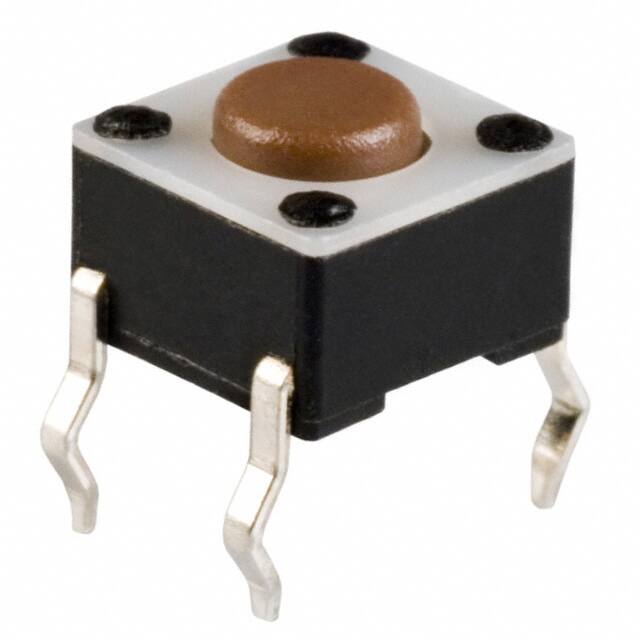

Specifications
- Terminal Stili
- PC Pin
- Renk
- Brown
- Akım Değeri
- 50mA
- Housing Material
- Nylon
- Contact Plating
- Silver
- RoHS Durumu
- ROHS3 Compliant
- Kurşunsuz
- Lead Free
- Switch Type
- KEYPAD SWITCH
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -20°C~70°C
- Nominal Gerilim
- 12V
- Yayın Yılı
- 2001
- Actuator Type
- Standard
- Ambalaj
- Bulk
- Actuator Material
- Polyamide (PA), Nylon
- Operating Force
- 100gf
- ECCN Kodu
- EAR99
- Max Voltage Rating Dc
- 50V
- Voltage Rated Dc
- 12V
- Terminal
- PC Pin
- Number Of Switches
- 1
- Outline
- 6.00mm x 6.00mm
- Switch Function
- Off-Mom
- Pcb Hole Count
- 4
- Terminal Material
- BRASS
- Montaj Tipi
- Through Hole
- Mechanical Life
- 100,000 Cycles
- Contact Currentdcmax
- 0.05A
- Contact Materials
- Bronze, Silver
- Illumination Type
- Illuminated, Non-Illuminated
- Actuator Orientation
- Top Actuated
- JESD-609 Kodu
- e4
- Contact Resistance
- 100mOhm
- Circuit
- SPST-NO
- Contact Dc Max Rating R Load
- .05A@12VDC
- Actuator Length
- 700μm
- Seri
- TL1105
- Contact Current Rating
- 50mA
- Actuator Height Off Pcb Vertical
- 4.30mm
- Throw Configuration
- SPST
