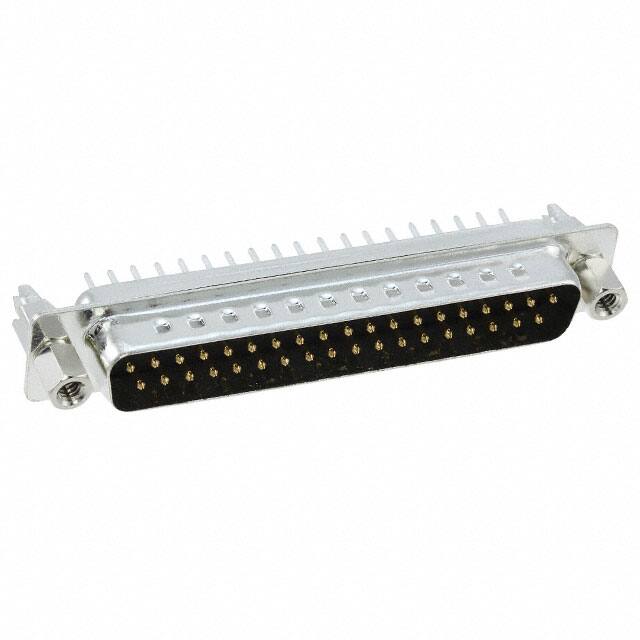

Specifications
- Number Of Pcb Rows
- 2
- Reliability
- COMMERCIAL
- Contact Materials
- Brass
- Çalışma Sıcaklığı
- -55°C~105°C
- Max Current Rating
- 5A
- Body Breadth
- 0.494 inch
- Connector Type
- Plug, Male Pins
- Orientation
- Straight
- Montaj
- Panel, Through Hole
- Sıra Sayısı
- 2
- Contact Type
- Signal
- Seri
- 627
- Yayın Yılı
- 2011
- Housing Material
- Polyester
- Pozisyon Sayısı
- 37
- RoHS Durumu
- ROHS3 Compliant
- Connector Style
- D-Sub
- Reference Standard
- UL
- Insulation Resistance
- 5000000000Ohm
- Genişlik
- 12.6mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Flammability Rating
- UL94 V-0
- Additional Feature
- STAMPED CONTACTS, STANDOFFS
- Number Of Ports
- 1
- Shell Size Connector Layout
- 4 DC C
- Yükseklik
- 13.1mm
- Contact Finish
- Gold
- Contact Finish Thickness
- Flash
- Plating
- Steel
- Dielectric Material
- Polyester Thermoplastic
- Terminal
- Solder
- Pcb Contact Pattern
- STAGGERED
- Fabrika Tedarik Süresi
- 14 Weeks
- Parça Durumu
- Active
- Total Number Of Contacts
- 37
- Flange Feature
- Mating Side, Female Screwlock (4-40)
- Özellikler
- Board Lock, Grounding Indents, Shielded
- Rated Current Signal
- 5A
- Shell Material Finish
- Steel, Nickel Plated
- Bodyshell Style
- RECEPTACLE
