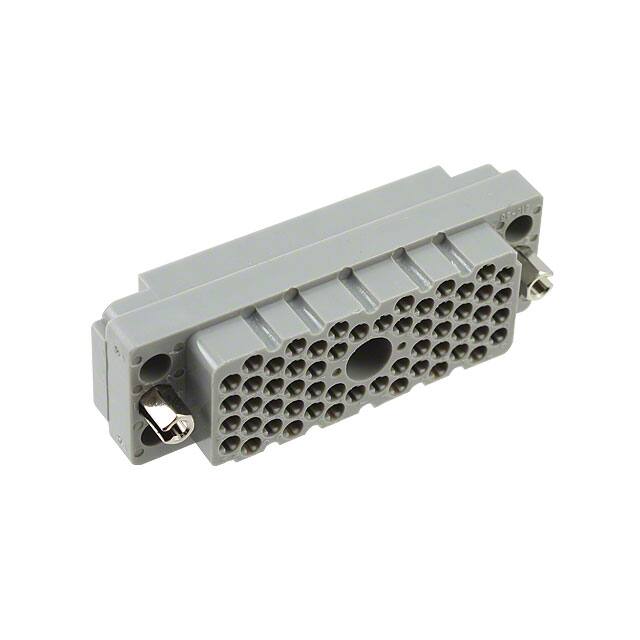

516-056-000-402

Specifications

Number Of Poles

56

Depth

80.95mm

Montaj Tipi

Varies by Contact

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Additional Feature

ROHS AND ELV COMPLIANT

Renk

Gray

Contact Materials

Bronze

Max Current Rating

8.5A

Sıra Sayısı

9

Montaj

Panel

Terminal

Screw

Fabrika Tedarik Süresi

14 Weeks

Polarization Key

POLAR PIN POSITION

Contact Style

SQ PIN-SKT

Insulation Resistance

5GOhm

Housing Color

Grey

Ambalaj

Bulk

Total Number Of Contacts

56

Connector Type

Housing for Non-Gendered Contacts

Dielectric Withstanding Voltage

2000VAC V

Contact Pattern

STAGGERED

Pcb Contact Pattern

STAGGERED

Akım Değeri

8.5A

Insulation Materials

Polyester

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Seri

516

Maks. Çalışma Sıcaklığı

125°C

Pitch

0.150 3.81mm

Reference Standard

UL

Connector Usage

Receptacle

Note

Contacts Not Included

Contact Finish Mating

AU ON NI

Uzunluk

65.84mm

Özellikler

Jackscrew Socket, Mating Guide

Yayın Yılı

2005

Min. Çalışma Sıcaklığı

-65°C

Housing Material

Polycarbonate

Genişlik

22.25mm
