Volume pricing
- 1+ pcs$13.49
- 10+ pcs$12.73
- 100+ pcs$12.00
- 500+ pcs$11.33
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

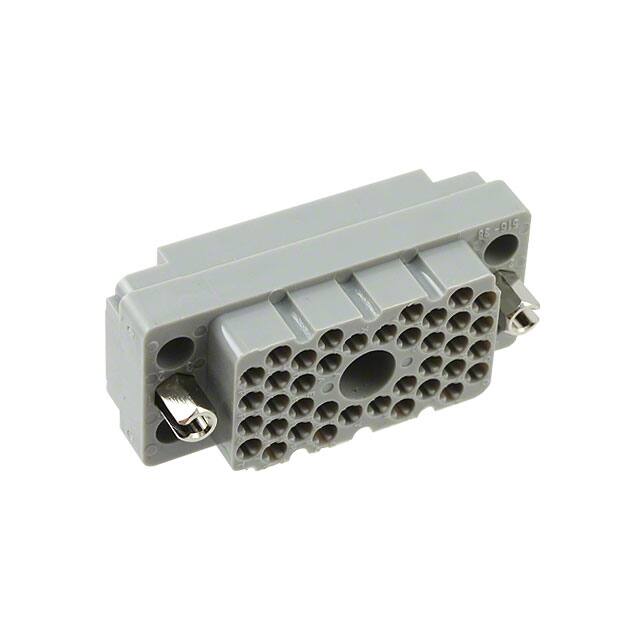

Specifications
- Reliability
- COMMERCIAL
- Kurşunsuz
- Lead Free
- Fabrika Tedarik Süresi
- 14 Weeks
- Maks. Çalışma Sıcaklığı
- 125°C
- Additional Feature
- ROHS AND ELV COMPLIANT
- Contact Plating
- Gold
- Dielectric Withstanding Voltage
- 2000VAC V
- Pozisyon Sayısı
- 38
- Terminal
- Screw
- Number Of Conductors
- ONE
- Reference Standard
- UL
- Reach Svhc
- Unknown
- Yayın Yılı
- 2005
- Akım Değeri
- 8.5A
- Montaj
- Panel
- Seri
- 516
- Yükseklik
- 22.2mm
- Parça Durumu
- Active
- Insulation Materials
- Polyester
- Total Number Of Contacts
- 38
- Housing Material
- Polycarbonate
- Connector Style
- Rack and Panel
- Polarization Key
- POLAR PIN POSITION
- Contact Style
- SQ PIN-SKT
- Genişlik
- 22.25mm
- Max Current Rating
- 8.5A
- Note
- Contacts Not Included
- Insulation Resistance
- 5GOhm
- Pcb Contact Pattern
- STAGGERED
- Uzunluk
- 50.8mm
- Kurşunsuz Kodu
- yes
- Contact Finish Mating
- AU ON NI
- Min. Çalışma Sıcaklığı
- -65°C
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Resistance
- 10mOhm
- Contact Materials
- Bronze
- Contact Pattern
- STAGGERED
- Renk
- Gray
- Housing Color
- Grey
- Orientation
- Straight
