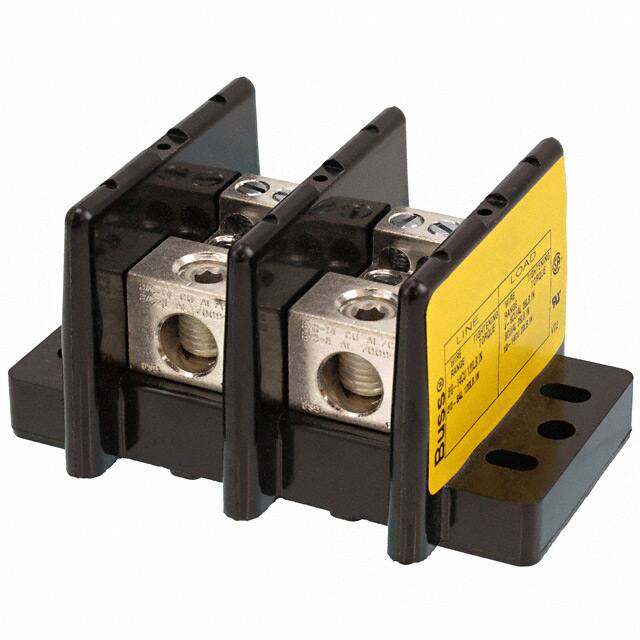

16021-2

Specifications

Parça Durumu

Active

Load Side Wirestud Size

#4 - #14CU; 4 - #8AL

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

3 Weeks

Number Of Poles

2

Nominal Gerilim

600V

Line Side Connections Per Pole

1

Line Side Connection Type

Screw Connection

Tip

Power Distribution Block

Current Rating Amps

175A

Seri

Magnum® 160

Yayın Yılı

2004

Line Side Wirestud Size

2/0 - #14CU; 2/0 - #8AL

Load Side Connections Per Pole

6

Load Side Connection Type

Screw Connection
