11725-3

Specifications

Line Side Wirestud Size

2-8 AWG AL; 2-14 AWG CU

Number Of Decks

1

Tip

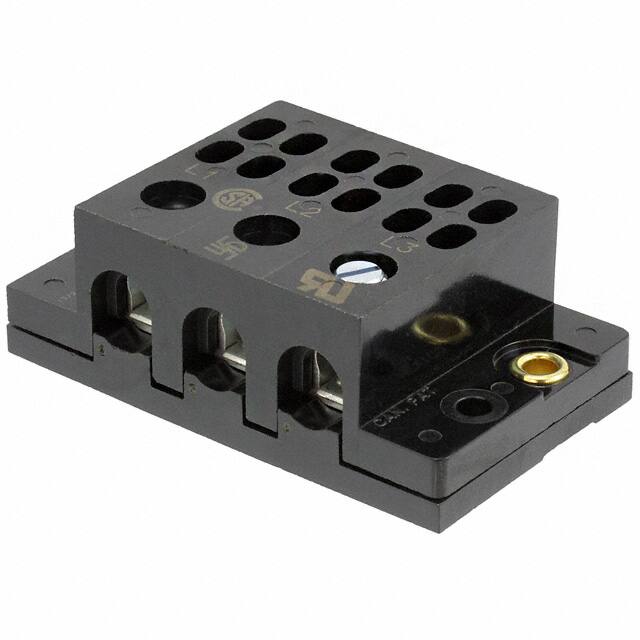

Power Distribution Block

Sıra Sayısı

1

Load Side Connections Per Pole

4

Weight

113.398093g

ECCN Kodu

EAR99

Montaj Stili

Screw

Number Of Poles

3

Kurşunsuz

Lead Free

Wire Gauge Max

14 AWG

Terminal Stili

Quick Connect

Fabrika Paket Adedi

96

Montaj Tipi

Panel Mount

Ambalaj

Bulk

Orientation

Right Angle

Yayın Yılı

2007

Voltage Rating Ac

600 VAC

Safety Approval

UL; CSA; CE

Renk

Black

Terminal

Screw

Load Side Connection Type

1/4 Quick Connects

Pitch

17.3mm

Voltage Rated Dc

600V

Approvals

CE, CSA, UR

Üretici Parça No

11725-3

Birim Ağırlık

4 oz

Fabrika Tedarik Süresi

3 Weeks

Voltage Rating

600 V

Seri

Magnum® 11725

Line Side Connection Type

Screw Connection

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Supply Voltage

600V

Max Current Rating

70A

Uzunluk

80.77mm

RoHS

No

Wire Gauge Min

2 AWG

Number Of Ways

3

Montaj

Cable
