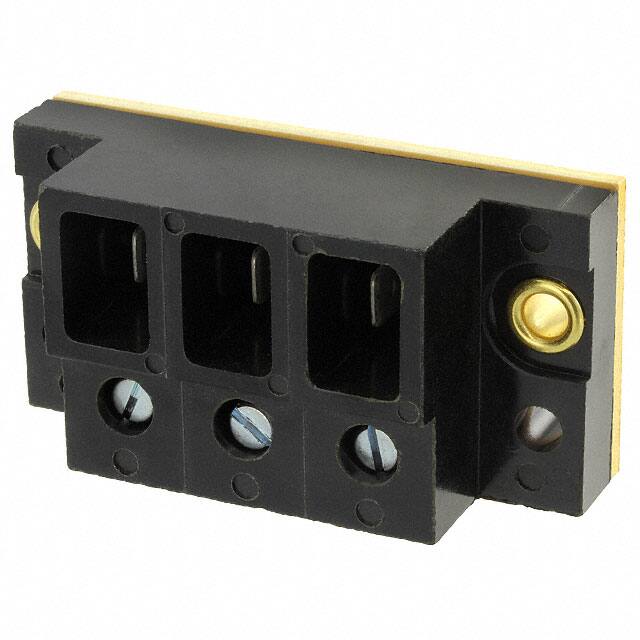

11675-3

Specifications

Line Side Wirestud Size

8-14 AWG CU

Safety Approval

UL; CSA; CE

Number Of Ways

3

Nominal Gerilim

250V

Yayın Yılı

2001

Seri

Magnum® 11675

Fabrika Tedarik Süresi

7 Weeks

Number Of Poles

3

RoHS Durumu

RoHS Compliant

Rated Current

40A

ECCN Kodu

EAR99

Parça Durumu

Active

Tip

Power Distribution Block

Line Side Connection Type

Screw Connection

Line Side Connections Per Pole

1

Number Of Decks

1

Current Rating Amps

40A

Sıra Sayısı

1

Wire Gauge

8 AWG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Load Side Connection Type

1/4 Quick Connects
