Specifications
- Operating Temperature Junction
- -65°C~150°C
- Weight
- 2.299997g
- Number Of Elements
- 2
- Yayın Yılı
- 2010
- Jedec95 Code
- TO-220AB
- Ambalaj
- Tube
- Pin Sayısı
- 3
- RoHS Durumu
- ROHS3 Compliant
- Radyasyon Dayanımı
- No

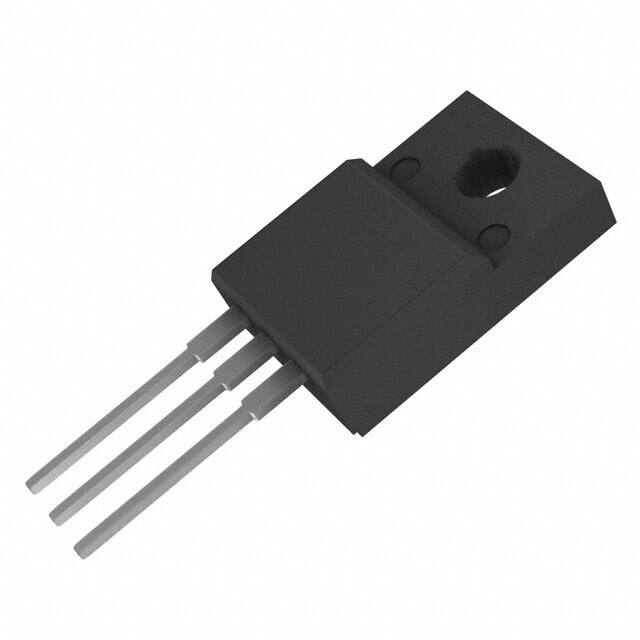

- Kılıf / Paket
- TO-220-3 Full Pack, Isolated Tab
- Forward Current
- 30A
- Diode Element Material
- SILICON
- Montaj Tipi
- Through Hole
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Fabrika Tedarik Süresi
- 15 Weeks
- Average Rectified Current
- 15A
- Max Reverse Voltage Dc
- 45V
- Uzunluk
- 10.36mm
- Terminal Pozisyonu
- SINGLE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Forward Voltage
- 550mV
- Voltage Forward Vf Max If
- 550mV @ 15A
- Current Reverse Leakage Vr
- 500μA @ 45V
- Peak Reverse Current
- 500μA
- Maks. Çalışma Sıcaklığı
- 150°C
- Genişlik
- 4.7mm
- Applications
- SUPER FAST SOFT RECOVERY
- Terminal Sayısı
- 3
- Diode Type
- Super Barrier
- Kurşunsuz Kodu
- no
- Temel Parça No
- SBR3045CT
- Seri
- SBR®
- ECCN Kodu
- EAR99
- Terminal Kaplaması
- Matte Tin (Sn)
- Montaj
- Through Hole
- Tepe Reflow Süresi (maks. sn)
- 40
- Tepe Reflow Sıcaklığı (°C)
- 260
- Max Repetitive Reverse Voltage Vrrm
- 45V
- HTS Kodu
- 8541.10.00.80
- Peak Nonrepetitive Surge Current
- 200A
