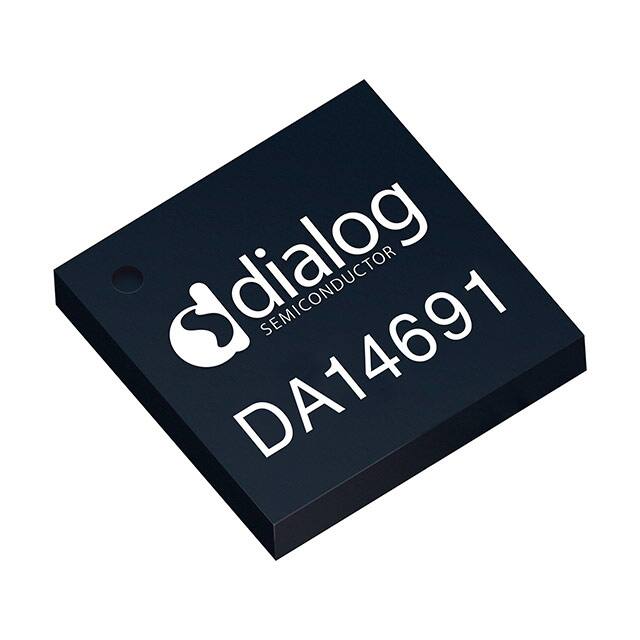

DA14691-00000HQ2

Specifications

Power Output

6dBm

Nem Hassasiyeti (MSL)

3 (168 Hours)

Program Memory Size

384Byte

Sensitivity

-97dBm

Data Bus Width

32bit

Interface

I2C, QSPI, SPI, UART, USB

Maximum Data Rate

1 Mbps

Maximum Clock Frequency

96 MHz

RoHS Durumu

RoHS Compliant

Gpio

20

Yükseklik

0.9 mm

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Parça Durumu

Active

Montaj Tipi

Surface Mount

Besleme Gerilimi

2.4V ~ 4.75V

Supply Current Receiving

1.8 mA

Fabrika Tedarik Süresi

12 Weeks

Genişlik

6 mm

Ürün Tipi

RF System on a Chip - SoC

Number Of Adc Channels

16 Channel

Technology

Si

Device Core

ARM Cortex-M33F

Temel Ürün No

DA14691

Interface Type

I2C, I2S, SPI, UART, USB

Frekans

2.4GHz

Supply Current Transmitting

3 mA

Output Power

6 dBm

Supply Voltagemax

4.75 V

Ürün Durumu

Active

Msl

MSL 3 - 168 hours

Number Of Ios

44 I/O

Rf Familystandard

Bluetooth

Minimum Operating Temperature

- 40 C

Number Of Timers

4 Timer

Protocol

Bluetooth v5.2

Uzunluk

6 mm

Tedarikçi Cihaz Paketi

86-VFBGA (6x6)

Tip

TxRx + MCU

Upsucsperipheral Ics Type

MICROCONTROLLER, RISC

Ambalaj

Tape & Reel (TR)
