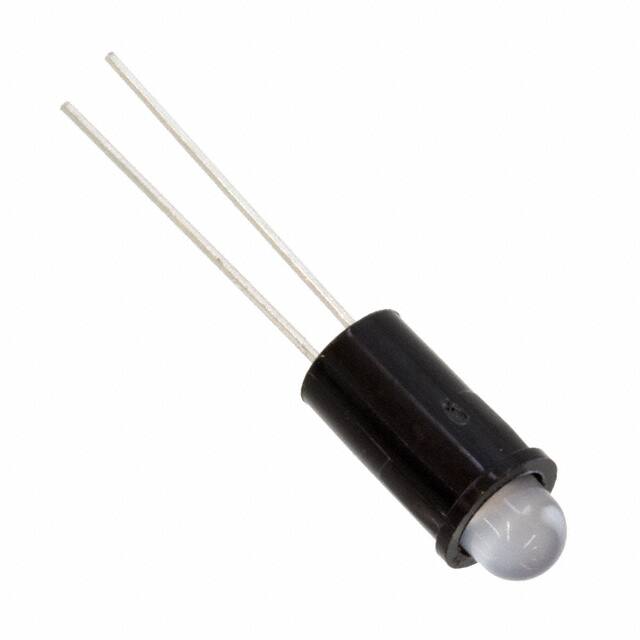

5593101001F

Specifications

Lens Size

5mm T-1 3/4

JESD-609 Kodu

e4

Fonksiyon Sayısı

1

Yüzey Montaj

NO

Akım

30mA Green 40mA Red

Parça Durumu

Active

HTS Kodu

8541.40.20.00

Lens Style

Round with Domed Top

Operating Temperature Min

-55°C

Gerilim

2.1V Green 1.8V Red

Millicandela Rating

20mcd Green, 60mcd Red

Terminal Sayısı

2

Lamp Color

Green, Red

Kurşunsuz Kodu

yes

Panel Cutout Shape

Round

Overall Height

15.88mm

Packing Method

BULK

Lens Color

White

Lens Transparency

Diffused

Tip

LED

RoHS Durumu

ROHS3 Compliant

Panel Cutout Dimensions

0.25 (6.35mm)

Wavelength Peak

565nm Green 660nm Red

Colorwavelength

Green/Red

Luminous Intensity

60.0/20.0 mcd

Fabrika Tedarik Süresi

10 Weeks

Ratings

Vf (Typ), If (Max)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

559

Operating Temperature Max

100°C

Mounting Feature

PANEL MOUNT

Viewing Angle

80°

Terminal Adımı

3.18mm

Yayın Yılı

2015

Additional Feature

IC COMPATIBLE, HIGH RELIABILITY

Configuration

COMMON BIPOLAR TERMINAL, 2 ELEMENTS

Terminal Kaplaması

Copper/Nickel/Silver (Cu/Ni/Ag)
