Volume pricing
- 1+ pcs$2.39
- 10+ pcs$2.25
- 100+ pcs$2.13
- 500+ pcs$2.01
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

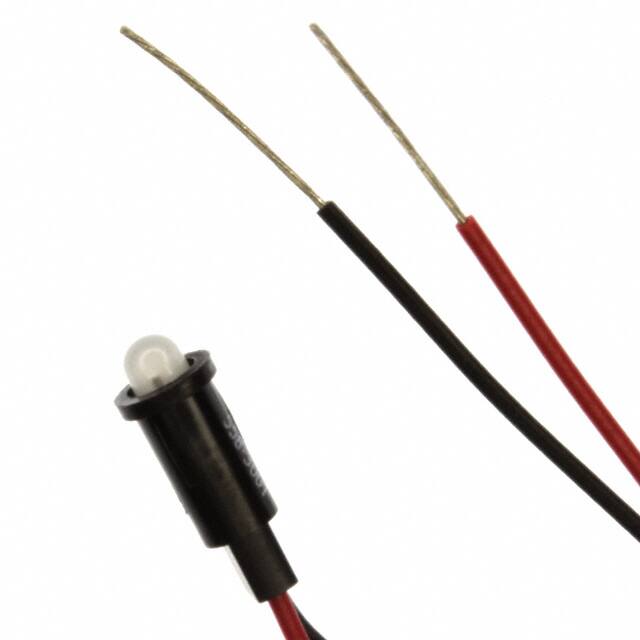

Specifications
- Configuration
- COMMON BIPOLAR TERMINAL, 2 ELEMENTS
- Ratings
- Vf (Typ), If (Max)
- Operating Temperature Min
- -55°C
- Overall Height
- 4.78mm
- Packing Method
- BULK
- Kurşunsuz Kodu
- yes
- Yayın Yılı
- 2011
- Millicandela Rating
- 8.7mcd Green, 5.6mcd Red
- Tcode
- T-1
- Yüzey Montaj
- NO
- Lamp Color
- Green, Red
- Fabrika Tedarik Süresi
- 10 Weeks
- Fonksiyon Sayısı
- 1
- Panel Cutout Shape
- Round
- Gerilim
- 2V Green 1.9V Red
- Akım
- 20mA Green 20mA Red
- Additional Feature
- IC COMPATIBLE, HIGH RELIABILITY
- Luminous Intensity
- 4.8 mcd
- Viewing Angle
- 200°
- Colorwavelength
- Green/Red
- Panel Cutout Dimensions
- 0.16 (4.06mm)
- Operating Temperature Max
- 100°C
- Seri
- 558
- HTS Kodu
- 8541.40.20.00
- Parça Durumu
- Active
- JESD-609 Kodu
- e4
- Tip
- LED
- Terminal Adımı
- 2.5mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Lens Size
- 3mm T-1
- Mounting Feature
- PANEL MOUNT
- Wavelength Peak
- 565nm Green 630nm Red
- RoHS Durumu
- ROHS3 Compliant
- Terminal Kaplaması
- Copper/Nickel/Silver (Cu/Ni/Ag)
- Terminal Stili
- Wire Leads - 14 (355.60mm)
- Lens Style
- Round with Domed Top
- Terminal Sayısı
- 2
