Volume pricing
- 1+ pcs$2.58
- 10+ pcs$2.44
- 100+ pcs$2.30
- 500+ pcs$2.17
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Overall Height
- 9.65mm
- Tcode
- T-1
- Operating Temperature Min
- -55°C
- Parça Durumu
- Active
- JESD-609 Kodu
- e4
- RoHS Durumu
- ROHS3 Compliant
- Terminal Adımı
- 2.54mm
- Yayın Yılı
- 2009
- Nominal Gerilim
- 2.1V Green 2V Red 2.1V Yellow
- Terminal Sayısı
- 4

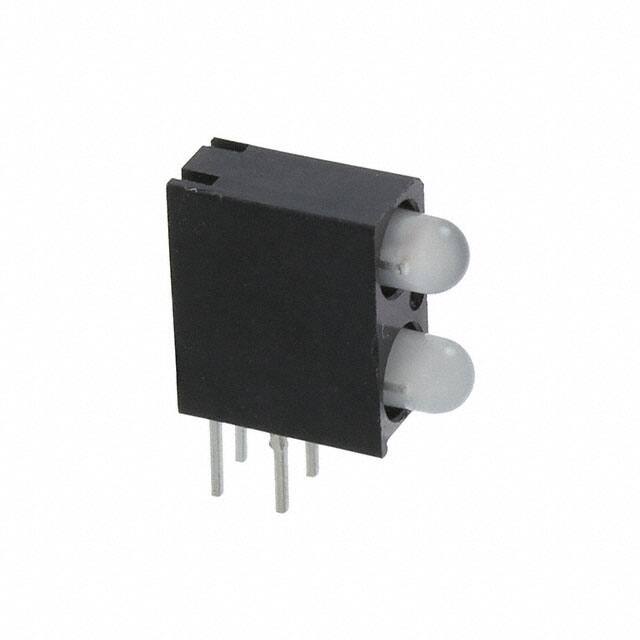

- Optoelectronic Device Type
- TRIPLE COLOR LED ARRAY
- Akım
- 30mA Green 30mA Red 20mA Yellow
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Operating Temperature Max
- 100°C
- Renk
- Green, Red (x 1), Green, Yellow (x 1)
- Seri
- 553
- Fabrika Tedarik Süresi
- 10 Weeks
- Terminal Kaplaması
- Copper/Nickel/Silver (Cu/Ni/Ag)
- Lens Style
- Round with Domed Top
- Yüzey Montaj
- NO
- Wavelength Peak
- 565nm 635nm 585nm
- Fonksiyon Sayısı
- 2
- Mounting Feature
- RADIAL MOUNT
- Lens Size
- 1.81mm Dia
- Viewing Angle
- 60° Green-Red, 80° Green-Yellow
- Luminous Intensity
- 4.7/10.0/4.3/6.3 mcd
- Configuration
- 2 High x 2 Wide
- Montaj Tipi
- Through Hole, Right Angle
- Ambalaj
- Bulk
- Millicandela Rating
- 10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow
- HTS Kodu
- 8541.40.20.00
- Lens Type
- Diffused
