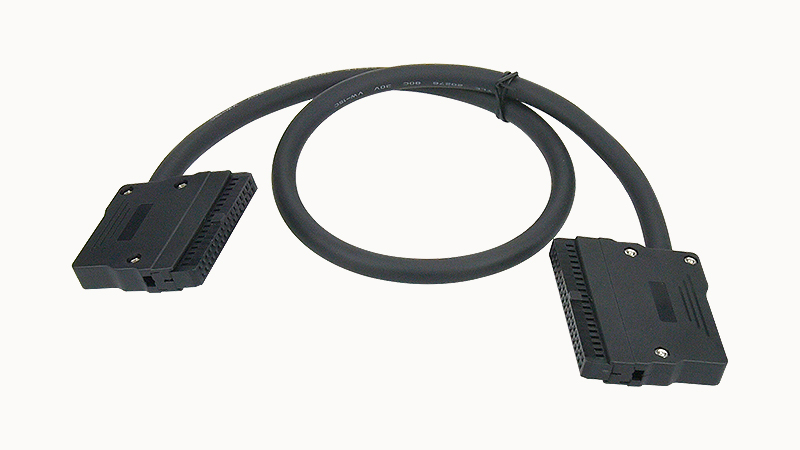

MIL cable-DX210-7S-500-00A(H)

Specifications

Cable Outer Diameter

6.5mm

Oil Resistance

Oil resistant

Maximum Current Carrying Capacity Of Each Path

0.7A

Single Stranded Wire Material

Tinned copper

Outer Sheathcolor

black

Single Strand Cross Section Awg

28

Connection Name

On-site side

Exit Angle

90°

Number Of Digits

26

Flame Retardant

ULVW-1

Products Weight Without Packaging

50

Ambient Temperature Operation

-20 °C ... 80 °C

Connection Meets Standards

UL758

Single Strand Crosssectional Area

0.08mm²

Connection Method

IDC/MIL female connector

Single Wire Number Of Twisted Wires

26

Packing Unit

1

Gasoline Resistance

≤246Ω/KM

Connection Volume

1

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Outer Sheath Material

PVC

Shield

Yes

Kablo Uzunluğu

0.5米

Spacing

2.54mm

Maximum Allowable Working Voltage

30VDC
