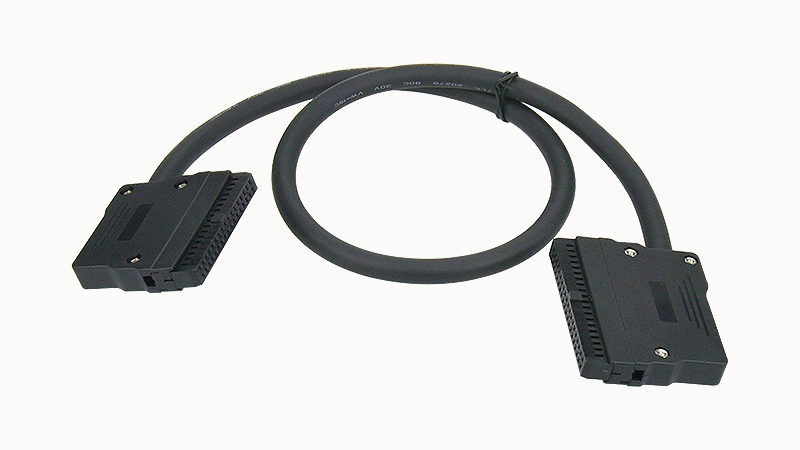

MIL cable-DX210-4S-500-00A(H)

Specifications

Maximum Current Carrying Capacity Of Each Path

0.7A

Cable Outer Diameter

7.6mm

Oil Resistance

Oil resistant

Single Stranded Wire Material

Tinned copper

Outer Sheathcolor

black

Connection Name

On-site side

Single Strand Cross Section Awg

28

Exit Angle

90°

Number Of Digits

40

Ambient Temperature Operation

-20 °C ... 80 °C

Flame Retardant

ULVW-1

Products Weight Without Packaging

50

Connection Meets Standards

UL758

Single Strand Crosssectional Area

0.08mm²

Connection Method

IDC/MIL female connector

Packing Unit

1

Single Wire Number Of Twisted Wires

40

Connection Volume

1

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Outer Sheath Material

PVC

Gasoline Resistance

≤246Ω/KM

Shield

Yes

Kablo Uzunluğu

0.5米

Spacing

2.54mm

Maximum Allowable Working Voltage

30VDC
