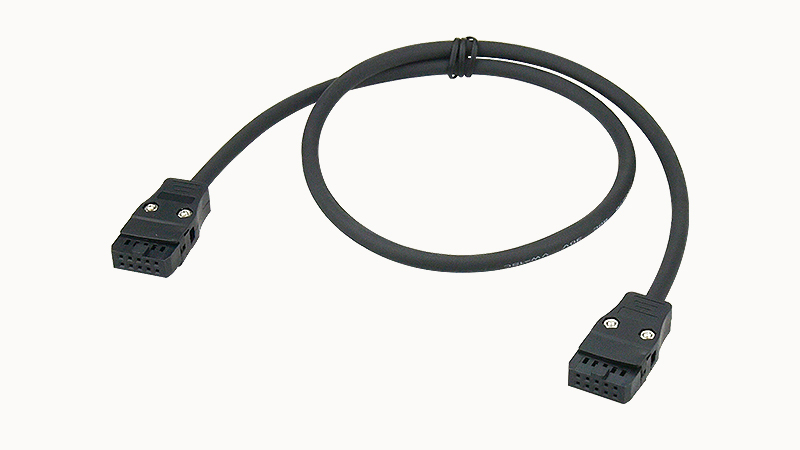

MIL cable-DX210-1S-500-00A(H)

Specifications

Maximum Allowable Working Voltage

30VDC

Spacing

2.54mm

Kablo Uzunluğu

0.5米

Shield

Yes

Outer Sheath Material

PVC

Connection Volume

1

Ambient Temperature Storagetransportation

-20 °C ... 80 °C

Gasoline Resistance

≤246Ω/KM

Packing Unit

1

Single Wire Number Of Twisted Wires

10

Connection Method

IDC/MIL female connector

Single Strand Crosssectional Area

0.08mm²

Connection Meets Standards

UL758

Ambient Temperature Operation

-20 °C ... 80 °C

Products Weight Without Packaging

50

Flame Retardant

ULVW-1

Number Of Digits

10

Exit Angle

180°

Connection Name

Control system side

Single Strand Cross Section Awg

28

Outer Sheathcolor

black

Single Stranded Wire Material

Tinned copper

Maximum Current Carrying Capacity Of Each Path

0.7A

Oil Resistance

Oil resistant

Cable Outer Diameter

5.0mm
